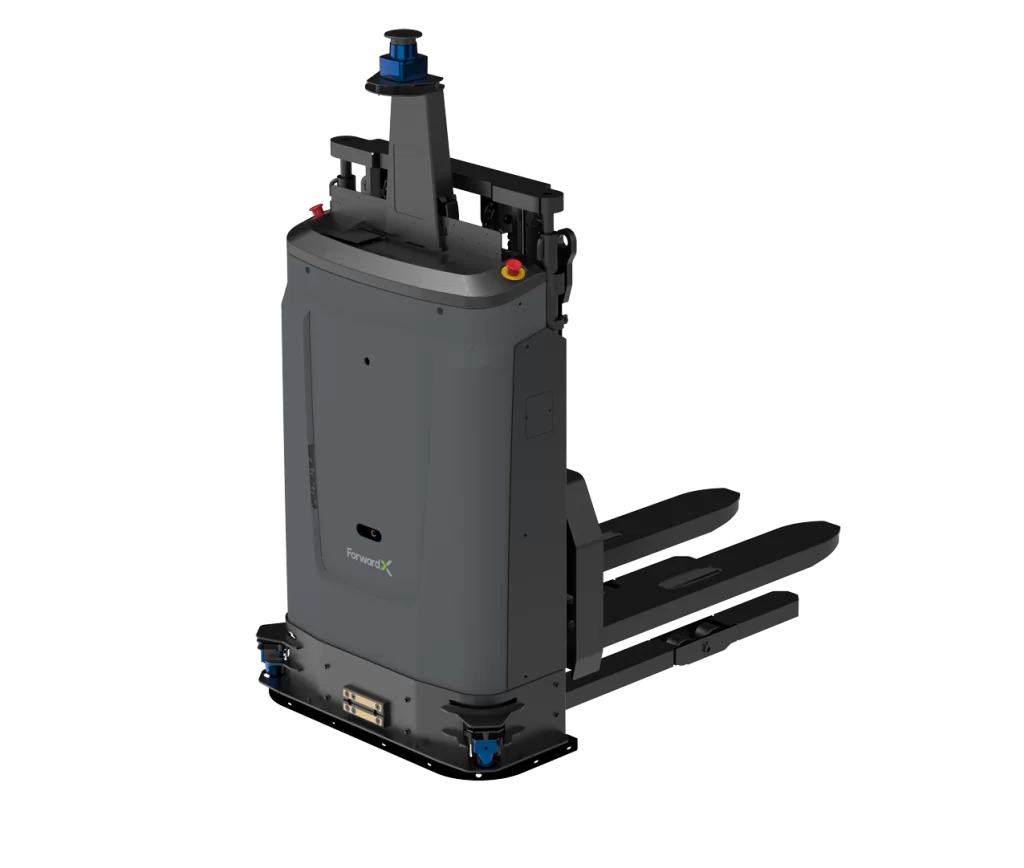

ForwardX Apex
Autonomous Forklift
THE MOST INTELLIGENT AUTONOMOUS FORKLIFT
Add Apex autonomous forklifts to your workflows for a safer and more productive environment. Apex AMRs will automate pallet movement to free up employees to focus on value-added picking time, returns processes, and/or shipment packing and organization.
Through the leading multi-sensor fusion technology and computer vision, Apex accurately perceives any changes in its environment of static and/or mobile obstacles and is able to identify the angle at which a pallet is positioned and adjust autonomously in real-time.

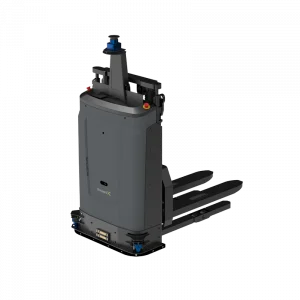

Apex 1400-L

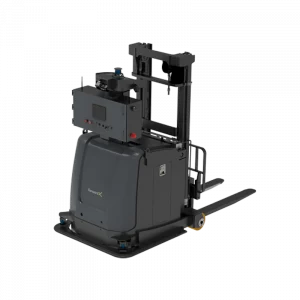

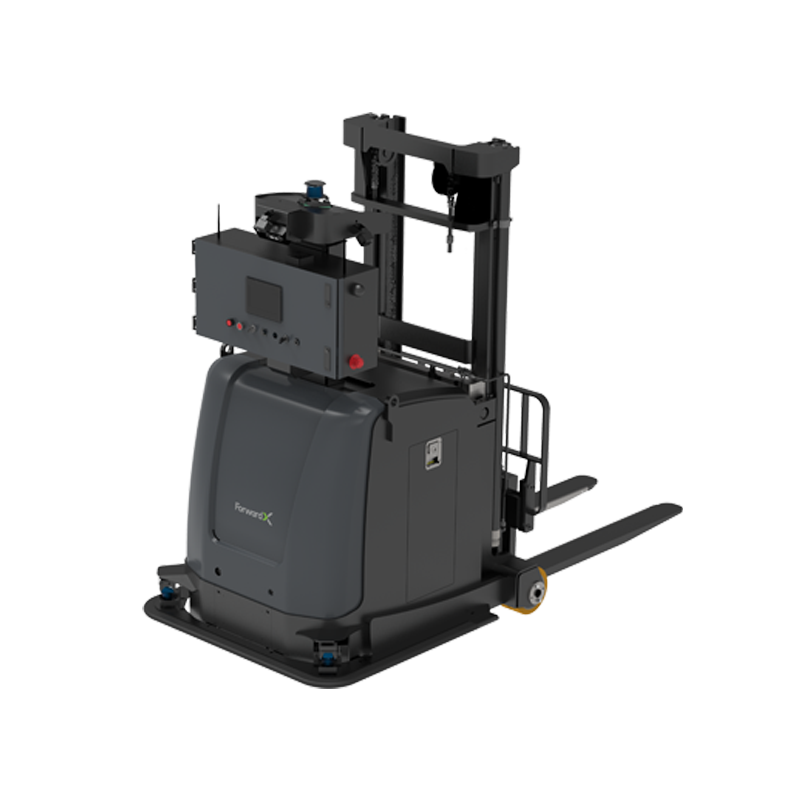

Apex C1500-L
APEX PRODUCT FAMILY

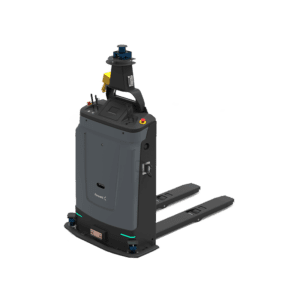

Apex 2000
Apex C1500-L
Apex 1400-L
Applications
Receiving
Putaway
Restock
Crosszone Handling
Conveyor Docking
Outbound
 |  |  | |
| Apex 1400-L | Apex C1500-L | Apex 2000 | |
| Dimensions | |||
| Length | 1,665 mm (65.55 in) | 2,450 mm (96.45 in) | 1,739 mm (68.46 in) |
| Width | 950 mm (37.4 in) | 1,112 mm (43.77in) | 1,032 mm (40.62 in) |
| Height | 1,900 mm (74.8 in) | 2,200 mm (86.61 in) | 1,737 mm (68.38 in) |
| Payload | |||
| Weight | 880 kg (1,940 lbs) | 2,700 kg (5,952 lbs) | 650 kg (1,433 lbs) |
| Max. Payload | 1,400 kg (3,086 lbs) | 1,500 kg (3,306 lbs) | 2,000 kg (4,410 lbs) |
| Fork Dimension | 1,150×170×60 mm (45.27/6.69/2.36 in) | 1,070×120×40 mm (42.12/3.93/1.57 in) | 1,150/175/56 mm (45.27/6.88/2.20 in) |
| Max. Fork Height | 1,500 mm (59 in) | 3,000 mm (118.11 in) | 195 mm (7.67 in) |
| Load Center | 600 mm (23.62 in) | 500 mm (19.69 in) | 600 mm (23.62 in) |
| Navigation & Positioning | |||
| Navigation Mode | Road Network | ||
| Positioning Mode | Laser SLAM/Visual Tag/Visual Semantics | ||
| Communication | |||
| Wi-Fi and Cellular Network | Yes（4G/5G, Optional） | ||
*The information, pictures, and claims made in this document are for reference purposes only
Other Products
Flex Series
Scalable, flexible, and adaptable to fit your mixed piece- and case-picking needs
Max Series
The powerhouse bringing all the flexibility of Flex to your heavier case- and pallet-picking needs
Conveyor AMRs
Realize autonomous loading & unloading with AS/RS docking
Lynx Series
Redefining flexibility in the automotive industry with fully autonomous, heavy duty material movement
f(x) Fleet Manager
The only operating system connecting to hundreds of robots and your existing systems
World’s Largest Cosmetics Company
Central Warehouse
After realizing immediate results using ForwardX Max 600-L AMRs, the warehouse also introduced the Apex 1400-L autonomous forklift. The project marked the first successful AMR and autonomous forklift operation.
2.36 in
Pallet Placement Precision
1st
AMR & Autonomous Forklift Collaboration
ISO Certified
Safety Tests Meet ISO 13849 Standards
JD.com
ECommerce Beverage Warehouse
This JD.com beverage fulfillment warehouse added ForwardX Apex autonomous forklifts to reduce operational costs and increase efficiency and safety.
50%
UPH INCREASE
±0.6 in
Pallet Placement Precision
1.8 mph
FULLY LOADED FORKLIFT SPEED
75,000
SQ FT WAREHOUSE
Our Mission
Using our AMRs and deep learning software algorithms, our mission is to add value to people’s lives and businesses’ operations. We envision a future where a network of intelligent robots enhances human potential and allows businesses to become the best employers they can be.
