REALIZE AUTONOMOUS LOADING & UNLOADING WITH AS/RS DOCKING
Conveyor AMRs are suitable for transporting and handling a variety of containers including boxes and pallets. They can be incorporated with your existing production lines or automatic storage and retrieval systems (AS/RS).
Our Conveyor AMRs are extensions of our Flex and Max series. Depending on your business needs, these AMRs can be customized to include up to two layers and two rows of rollers, such as one row on the bottom layer with two rows on the top layer.

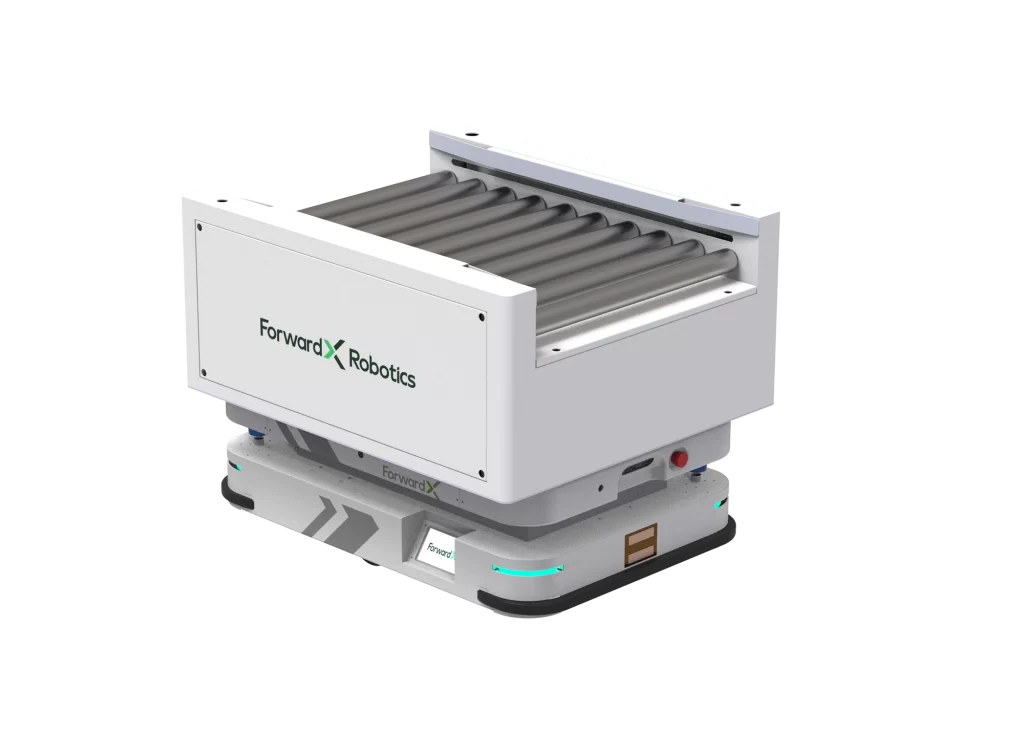

Conveyor AMRs
Flex 300 Conveyor
Max 600 Conveyor
APPLICATIONS
AS/RS Docking with Flex Conveyor
AS/RS Docking with Max Conveyor
| | |
| Flex 300 Conveyor Up to 2 layers and 2 rows | Max 600 Conveyor 1 layer and 1 row | |
| Dimensions | ||
| Length | 1050 mm (41.33 in) | 1539 mm (60.59 in) |
| Width | 650 mm (25.59 in) | 1450 mm (57.09 in) |
| Height | 1186 mm (46.69 in) | 341.5 mm (13.44 in) |
| Payload | ||
| Max. Payload | 50 kg (110.23 lbs) | 280 kg (617.29 lbs) |
| Load Size | L: 650 mm × W: 365 mm × H: 200 mm (25.59/14.37/7.87 in) – | L: 1,200 mm × W: 1,200 mm × H: 1,000 mm (47.24/47.24/39.37 in) ～ L: 1,000 mm × W: 800 mm × H: 1,000 mm (39.37/31.50/39.37 in) |
| Load Height | 1st layer：555 mm (21.85 in) 2nd layer：1,150 mm (45.28 in) | 610 mm (24.02 in) – |

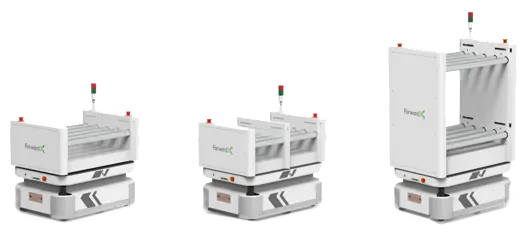

| Accessories |  | |
* The information, pictures, and claims made in this document are for reference purposes only.
OTHER PRODUCTS
Flex Series
Scalable, flexible, and adaptable to fit your mixed piece- and case-picking needs
Max Series
The powerhouse bringing all the flexibility of Flex to your heavier case- and pallet-picking needs
Apex Series
The most intelligent autonomous forklift, creating a safer and more productive warehouse floor
Lynx Series
Redefining flexibility in the automotive industry with fully autonomous, heavy duty material movement
f(x) Fleet Manager
The only operating system connecting to hundreds of robots and your existing systems
Chong YunXing Supply Chain
Pet Food Warehouse
China’s largest pet food supplier chose a ForwardX conveyor solution to reduce work intensity for its employees and enhance productivity and morale via human-machine collaboration.
2
Flex 300-S
5
Max 600-L
NARROW PASSAGE
HUMAN-MACHINE COLLABORATION
AiHuiShou
3C Product Recycling Plant
AiHuiShou needed a flexible solution that could keep up with its high frequency of production line changes. It also was seeking to reduce operational costs and labor intensity with a solution that could safely work with both humans and machines in narrow aisles.
±0.2 in
Precision Docking
54,000
SQ FT WAREHOUSE
FULLY INTEGRATED
WITH ITS VARIOUS AUTOMATION EQUIPMENT
