ForwardX Flex
Series AMRs

The most flexible alternative

The Flex family is highly scalable and can be adapted to different scenarios through a variety of functional modules.

Flex-L series uses its sensors and lifting function to autonomously dock to and move loose racks.

Flex 600-ST is a one-of-a-kind towing AMR, equipped with an on-board
screen for streamlined workflows.

360° Obstacle Avoidance

Equipped with laser scanners, depth cameras, 2D cameras, and more

Safety

Full 360° obstacle detection and avoidance means guaranteed safety

Onboard Interface

Equipped with a touchscreen interface connected to your f(x) Fleet Manager

Workflow Guidance

Onboard UI guides workers through workflows

Autonomous Charging

f(x) orchestrates Flex robots to charge when the opportunity presents itself

24/7 Operation

Autonomous charging means hands-free, round-the-clock operation

661 lb Payload

One of the highest payloads offered among AMR-enabled picking solutions

Versatility

High payload capacity makes Flex suitable for piece- and case-picking

Multiple Configurations

Can be configured with RFID scanners, printers, multi-level workspaces, etc.

Adaptability

Multiple configurations gives you options to fit your needs

Flex Product Family

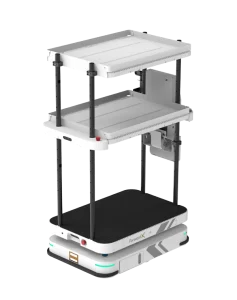

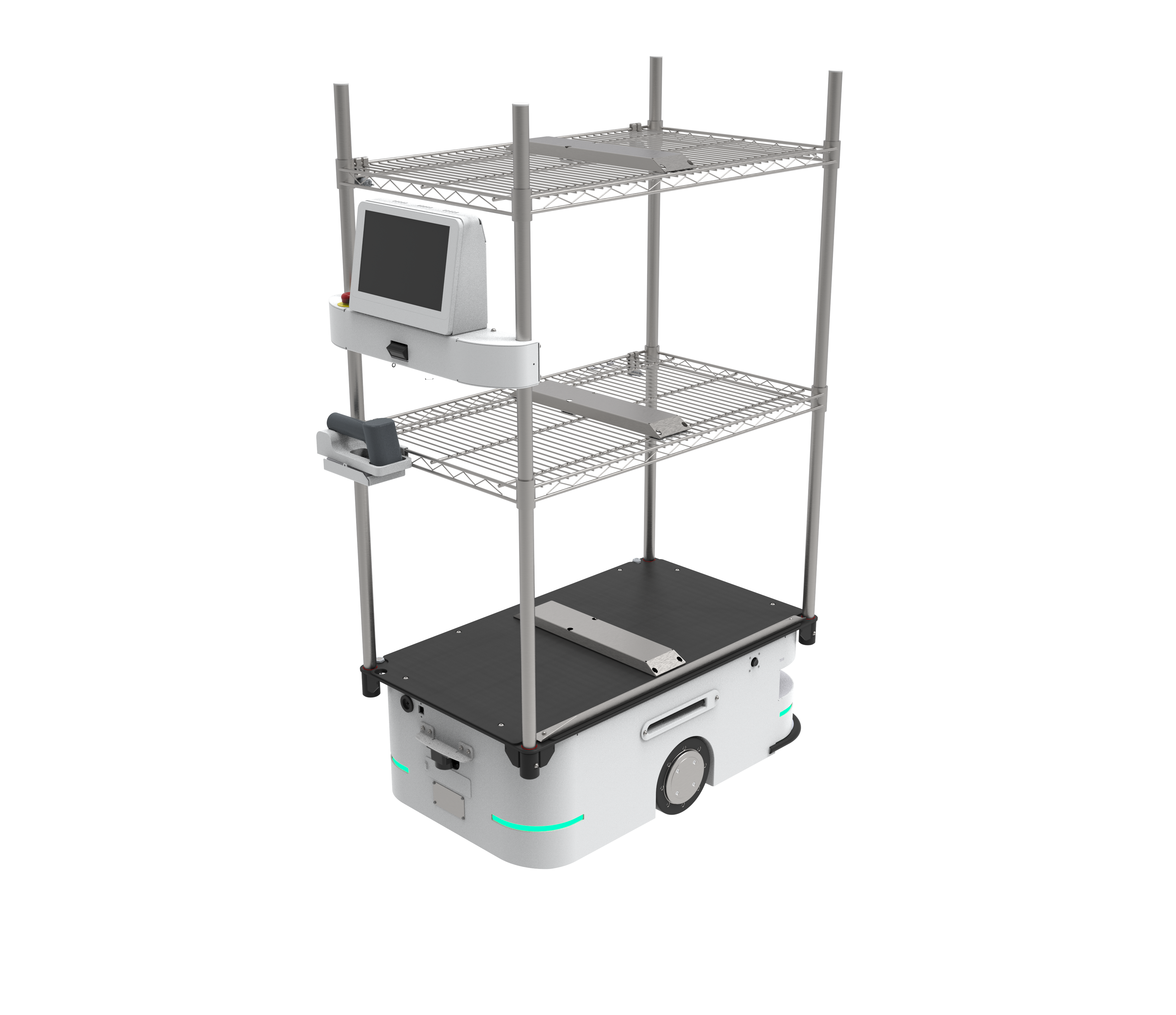

Flex 300-SCB

Flex 300-SCB is the triple decker AMR with more room to pick and sort on the fly. An on-board barcode scanner ensures accurate picking, and the touch-screen interface directs pickers where to place each item or case.

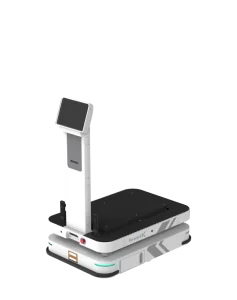

Flex 300-LS

Flex 300-LS is equipped with a lifting function and rack locking mechanism which ensures the rack is secure during high-speed movement for safe and reliable transport.

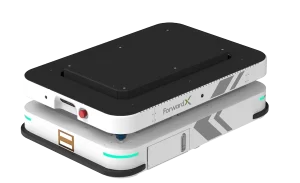

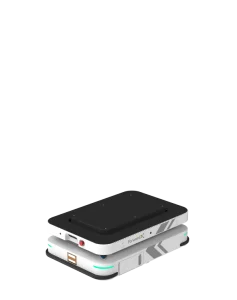

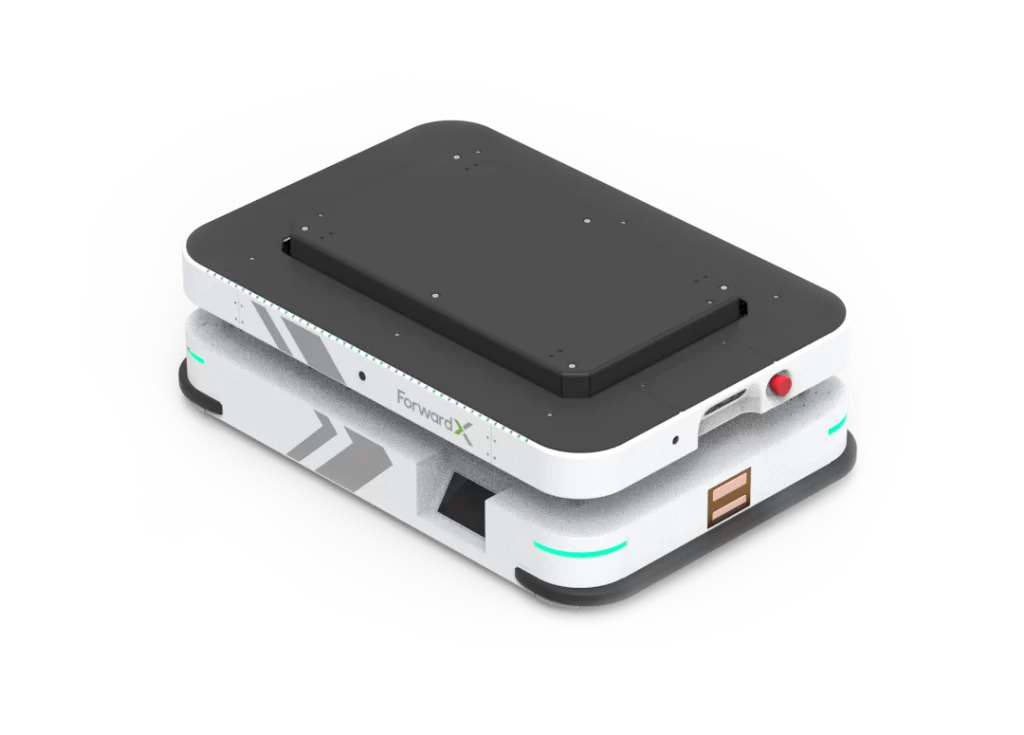

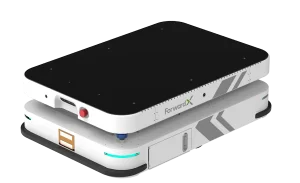

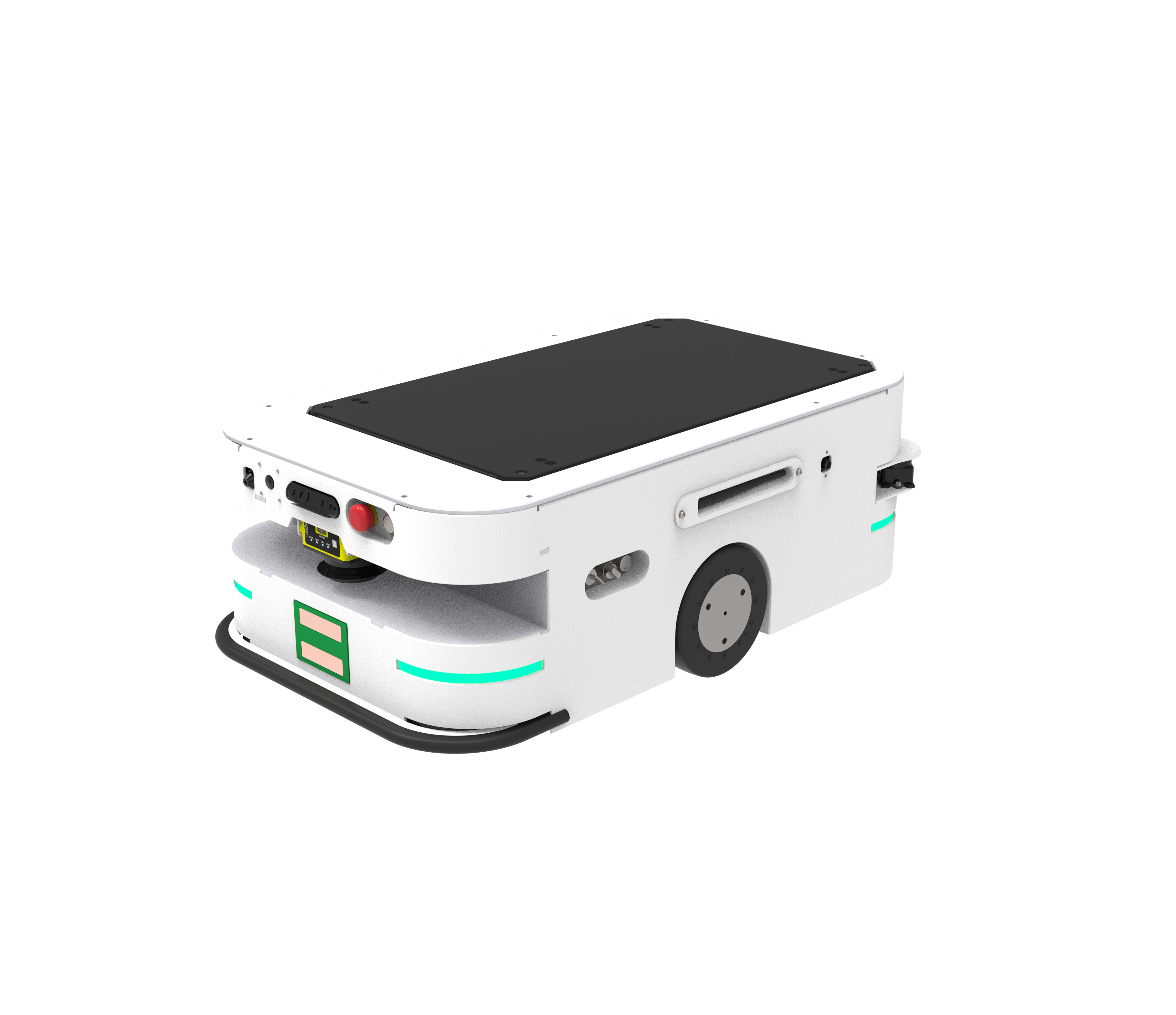

Flex 300-L

Flex 300-L is equipped with a lifting function, that when combined with the sensors and cameras allows for autonomous rack position detection and docking.

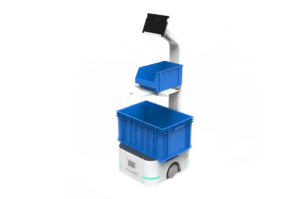

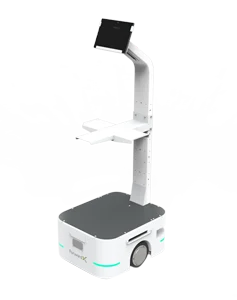

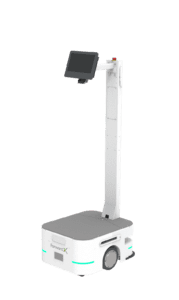

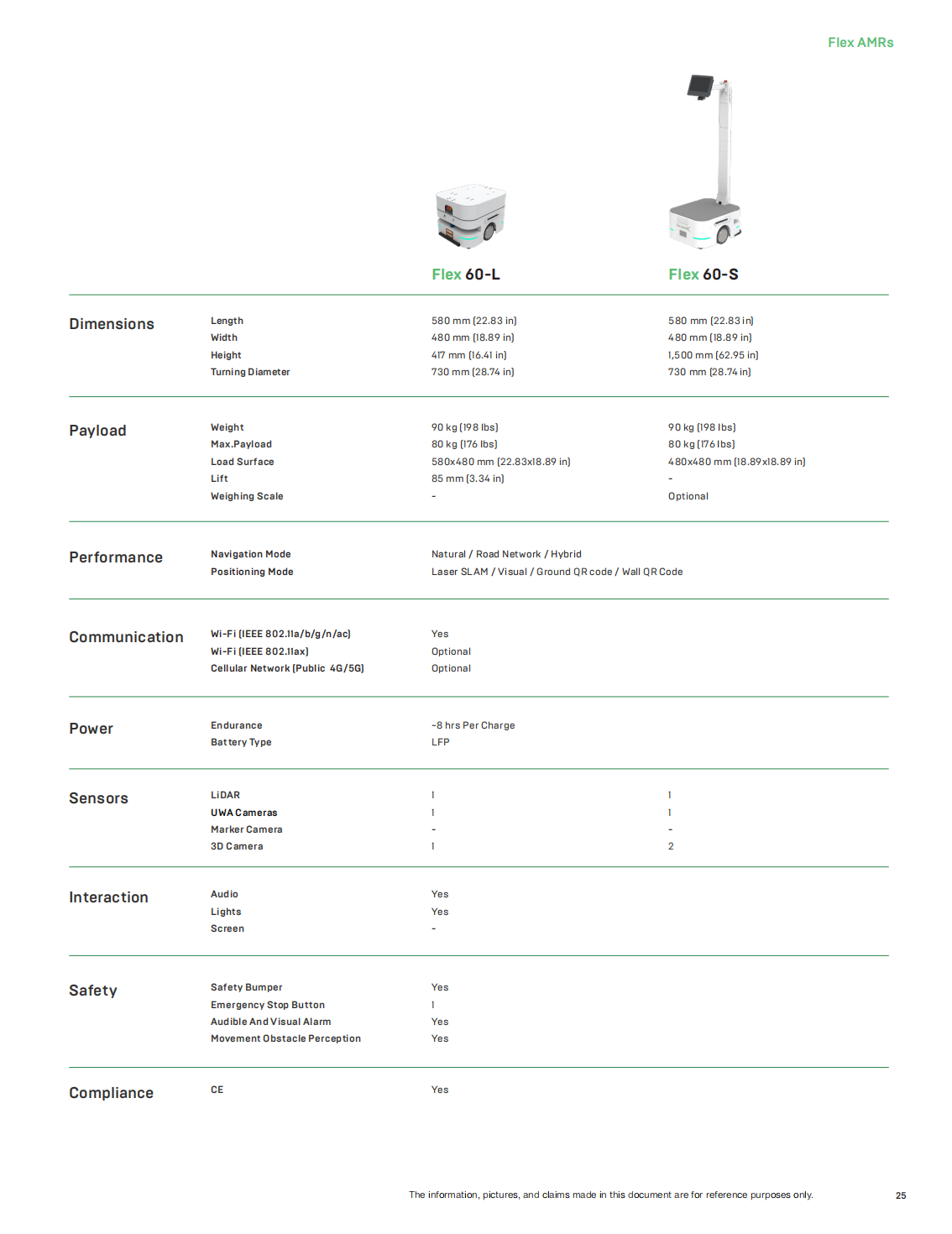

Flex 60-S

Flex 60-S is fully customizable with different shelf shapes, locations, and amounts for flexible and efficient picking and sorting workflows.

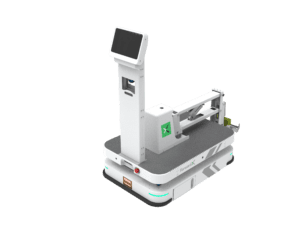

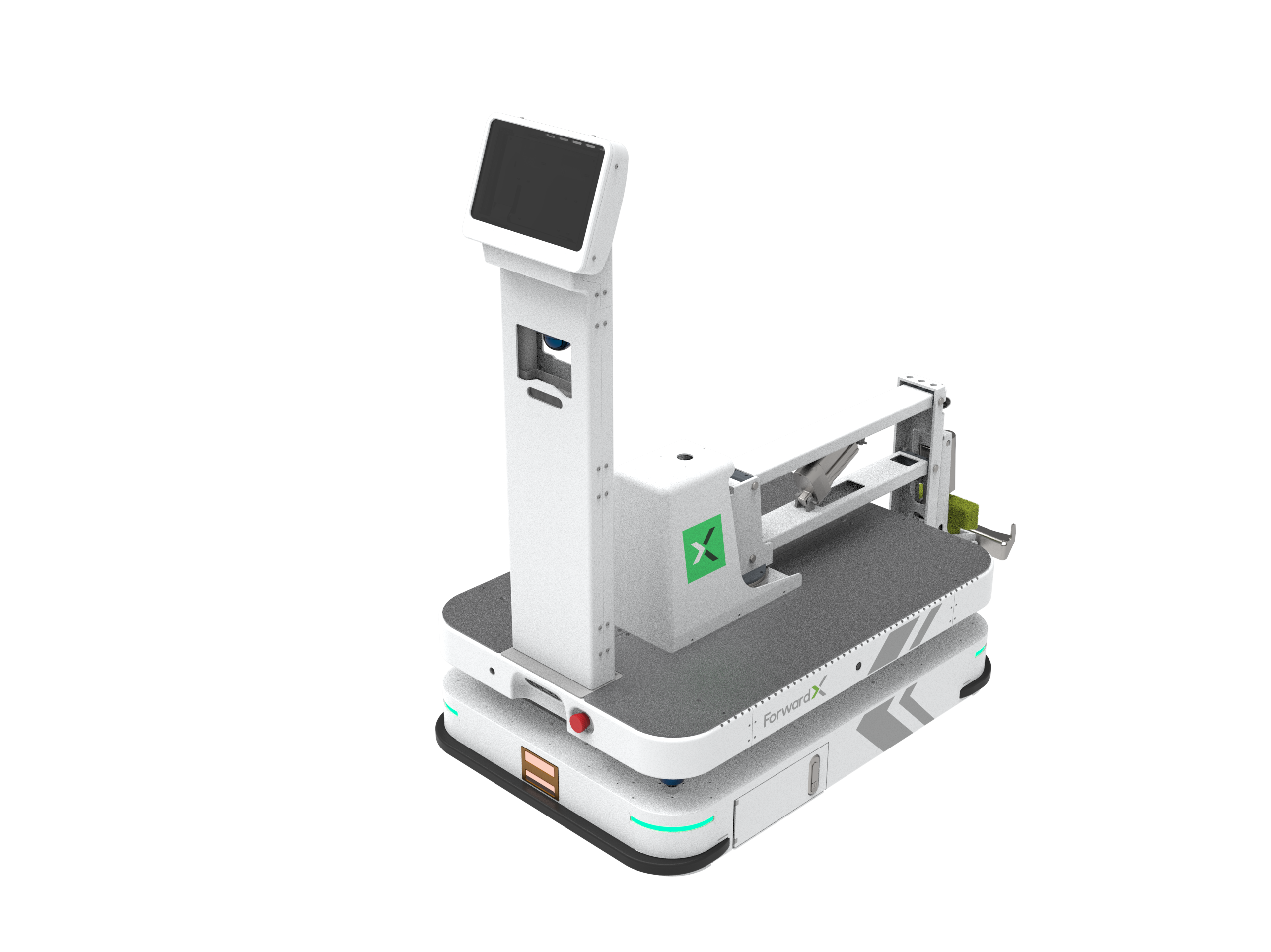

Flex 600-ST

Flex 600-ST is designed for autonomous towing of cage trolleys to eliminate manual pushing of heavy carts.

Applications

Piece- and Case-Picking

Production Line Material Handling

Rack Movement


Flex 300-LFlex 300-LSFlex 300-SCBFlex 600-STFlex 60-S

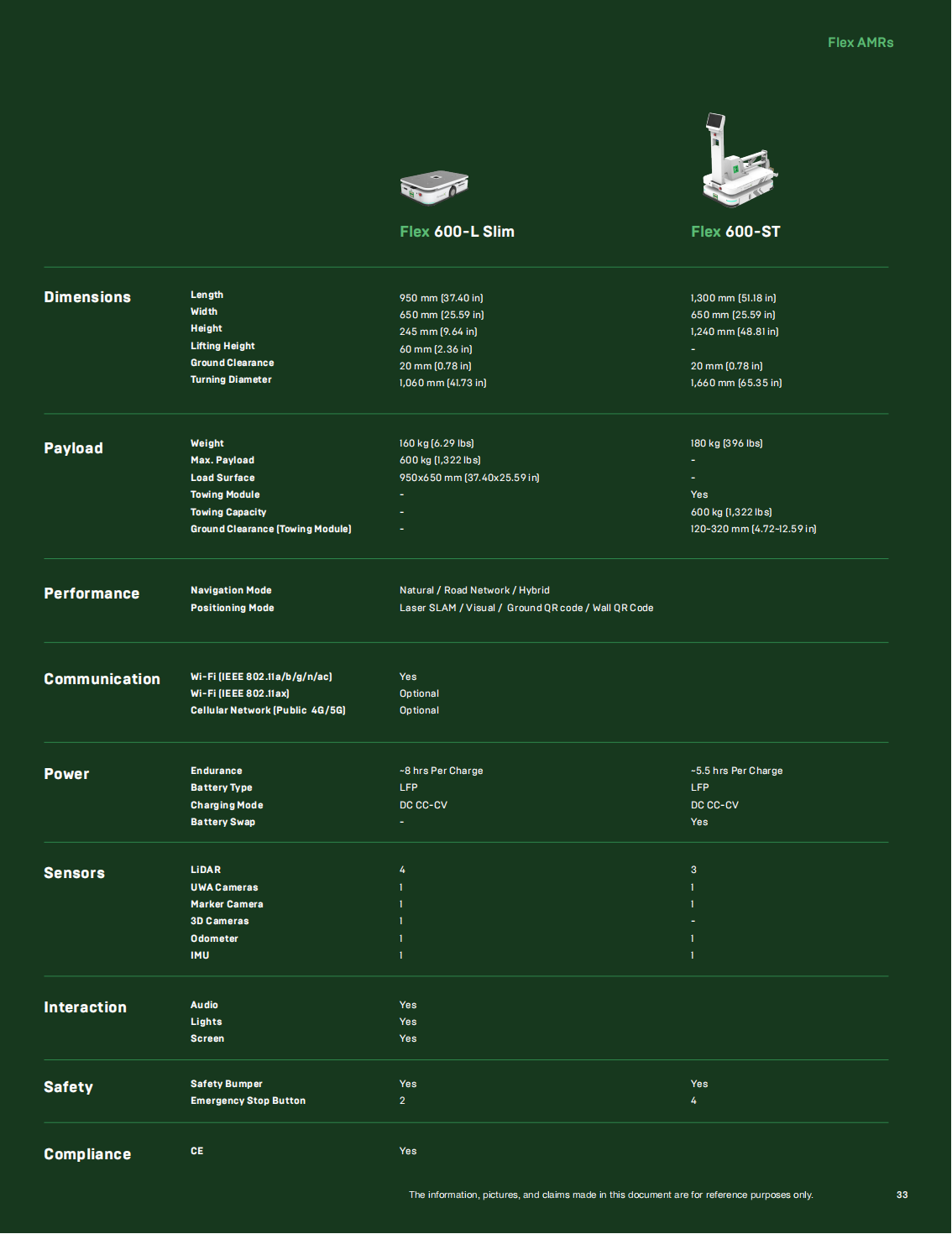

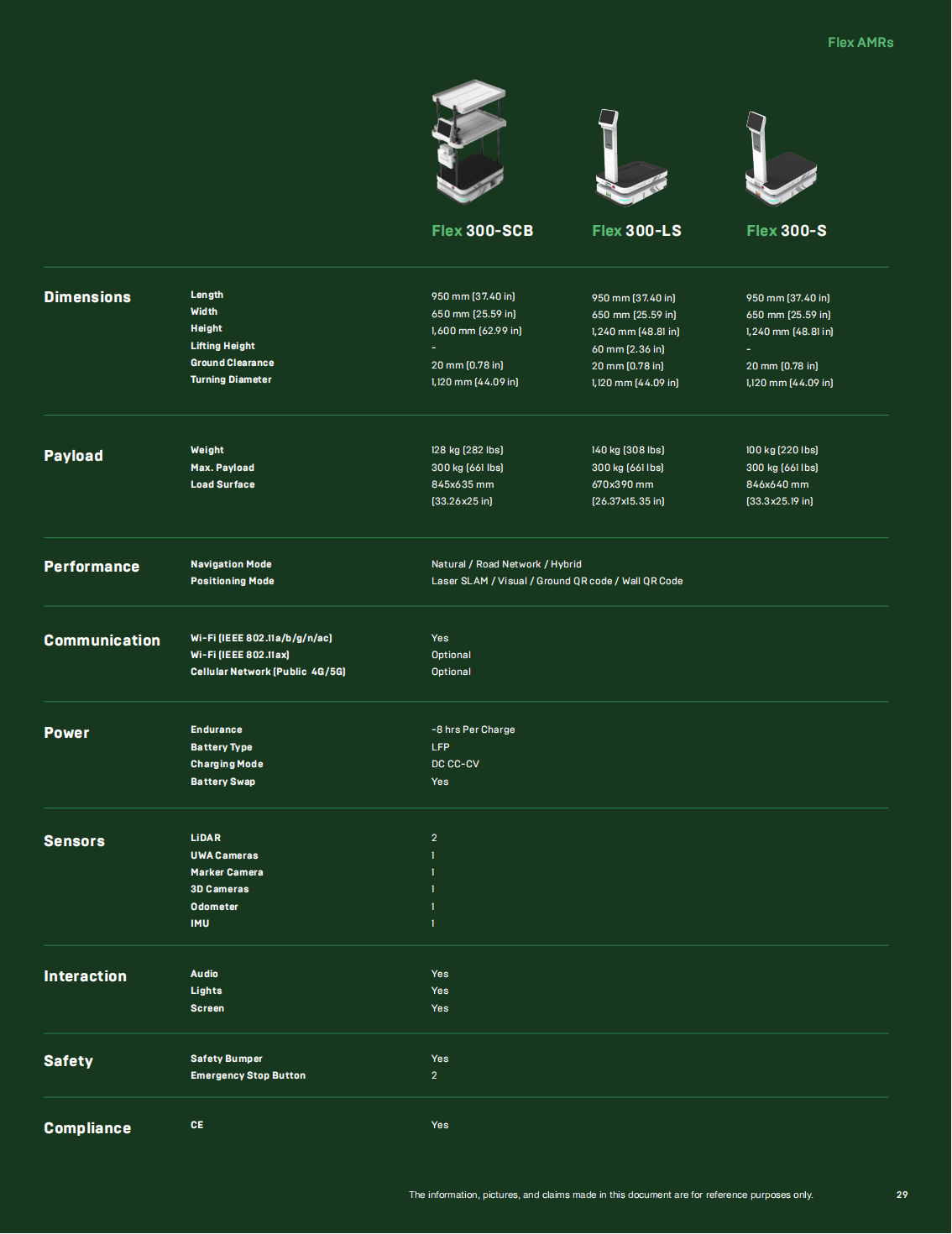

Dimensions
Length950 mm
(37.40 in)
950 mm
(37.40 in)
1,050 mm (41.34 in)1,300 mm
(51.18 in)
600 mm
(23.62 in)
Width650 mm
(25.59 in)
650 mm
(25.59 in)
650 mm
(25.59 in)
650 mm
(25.59 in)
480 mm
(18.89 in)
Height295 mm
(11.61 in)
295 mm
(11.61 in)
295 mm
(11.61 in)
1,240 mm
(48.81 in)
1,446 mm
(57.48 in)
Height (with extension)330 mm
(12.99 in)
1,240 mm
(48.81 in)
1,600 mm
(62.99 in)

Ground Clearance20 mm
(0.78 in)
20 mm
(0.78 in)
20 mm
(0.78 in)
20 mm
(0.78 in)

Payload
Max. Payload300 kg
(661 lbs)
300 kg
(661 lbs)
300 kg
(661 lbs)
600 kg
(1,322 lbs)
60 kg
(132 lbs)
Towing Capacity500kg (1,102lbs)
Lifting Height60 mm
(2.36 in)
60 mm
(2.36 in)
85 mm
(3.34 in)
Navigation & Positioning
Navigation ModeNatural/Road Network/Hybird
Positioning ModeLaser SLAM/Visual / Optional QR Code Navigation
Communication
Wi-Fi and Cellular NetworkYes(4G/5G, Optional)

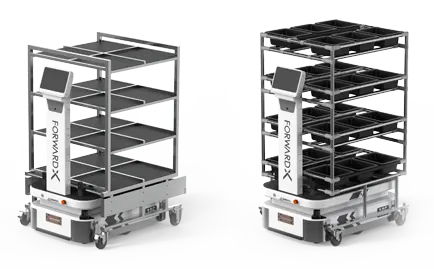

Accessories

Picking racks, handling racks

  • The information, pictures, and claims made in this document are for reference purposes only
