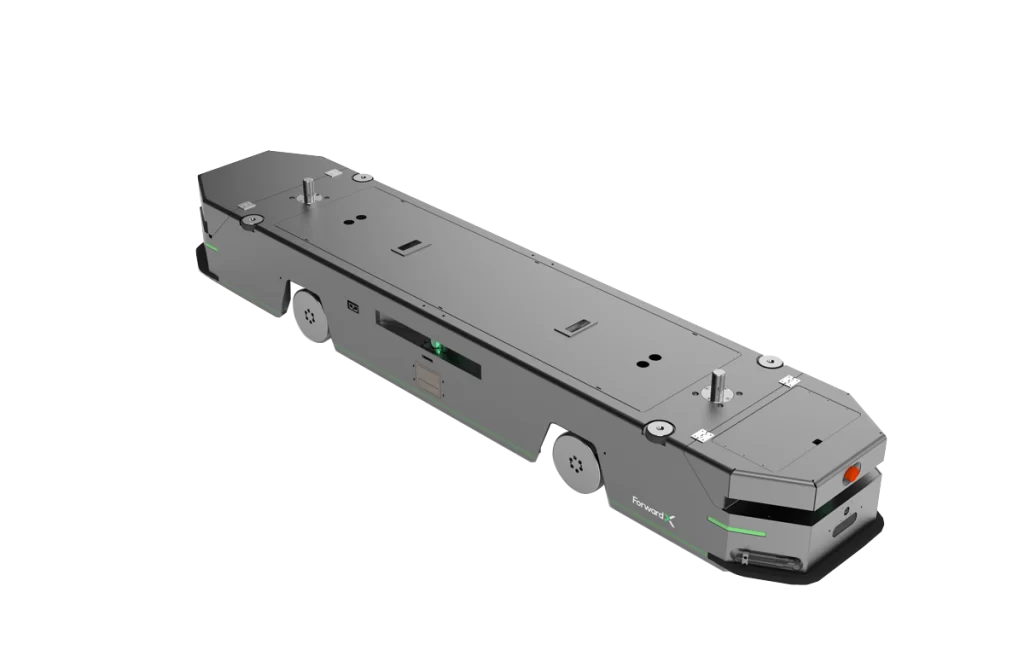

ForwardX Lynx
Series AMRs

Redefining Flexibility

in the automotive industry

Lynx is the most flexible AMR built for the automotive industry that is driving efficiency with rapid deployment, leading to quick ROI.

The Lynx series is designed to solve pain points in the automotive manufacturing industry. Lynx uses deep learning computer vision paired with a LIDAR-based SLAM navigation system making it suitable for stable operations in a complex environment. It works alongside personnel, other AMRs, and customers’ existing automation equipment without a need for remodeling or laying out magnetic strips or other fixed routes.

3,306 lb Payload

The highest payload capacity for an AMR of its kind

Versatility

High payload capacity makes Lynx suitable for end-to-end material movement in the factory

Omnidirectional

Any direction is "forward"

Agility

Moving in either direction allows Lynx to work in narrow aisles and tight spaces with ease

360° Obstacle Avoidance

Equipped with laser scanners, depth cameras, 2D cameras, and more

Safety

Full 360° obstacle detection and avoidance means guaranteed safety

±0.4 Inch Precision

±0.4 inch stopping and docking accuracy

Fully Autonomous

±0.4 inch precision means 0 human intervention during material movement workflows

Multiple Configurations

Can be configured with handheld devices, existing equipment, etc.

Adaptability

Connect to existing tech for guided workflows and seamless integration

LYNX PRODUCT FAMILY

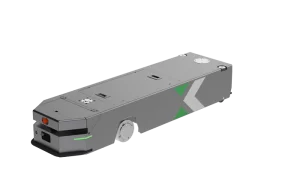

Lynx U1000

Unidirectional towing of up to 2,204 lbs.

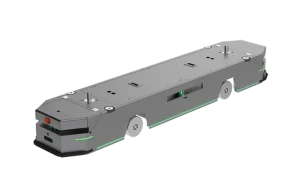

Lynx O1500

Omnidirectional towing of up to 3,306 lbs.

APPLICATIONS

Heavy Duty Rack Towing




Lynx U1000Lynx O1500
Dimensions
Length1,250-1,550 mm (49.2-61 in)2,200 mm (86.61 in)
Width440 mm (17.32 in)440 mm (17.32 in)
Height285 mm (11.22 in)285 mm (11.22 in)
Ground Clearance25 mm (0.98 in)25 mm (0.98 in)
Turning Diameter3,108 mm (122.30 in)2,254 mm (88.74 in)
Payload
Weight240 kg (529 lbs)340 kg (749 lbs)
Max. Payload1,000 kg (2,204 lbs)1,500 kg (3,306 lbs)
Function
ConfigurationYesYes
Towing Hook12
Lifting Height50 mm (1.96 in)50 mm (1.96 in)
Performance
Navigation ModeNatural / Road Network / Hybrid
Positioning ModeLaser SLAM / Visual Semantics / Optional QR Code Navigation
Communication
Wi-Fi (IEEE 802.11a/b/g/n/ac)Yes
Wi-Fi (IEEE 802.11ax)Optional
Cellular Network (Public 4G/5G)Optional
Cellular Network (Private LTE)Optional
Power
Endurance~8 hrs Per Charge~9 hrs Per Charge
Battery TypeLFPLFP
Charging ModeDC CC-CVDC CC-CV
Battery SwapYesYes
Sensors
LiDAR14
UWA Cameras12
3D CamerasOptional (0-2)Optional (0-1)
QR Code Cameras-downward11
Odometer11
IMU11
Interaction
AudioYes
LightsYes
HMIYes
Safety
Safety BumperYes
Emergency Stop Button2
Compliance
CEOptional

*The information, pictures, and claims made in this document are for reference purposes only
