Apex Product Family
The Apex series of autonomous forklifts includes the Apex1400-L pallet stacker forklift, Apex C1500-L counterbalanced forklift, Apex 2000 pallet jack forklift, and the Apex 1500 pallet jack forklift.
Safety
Versatility
Adaptability
Autonomous

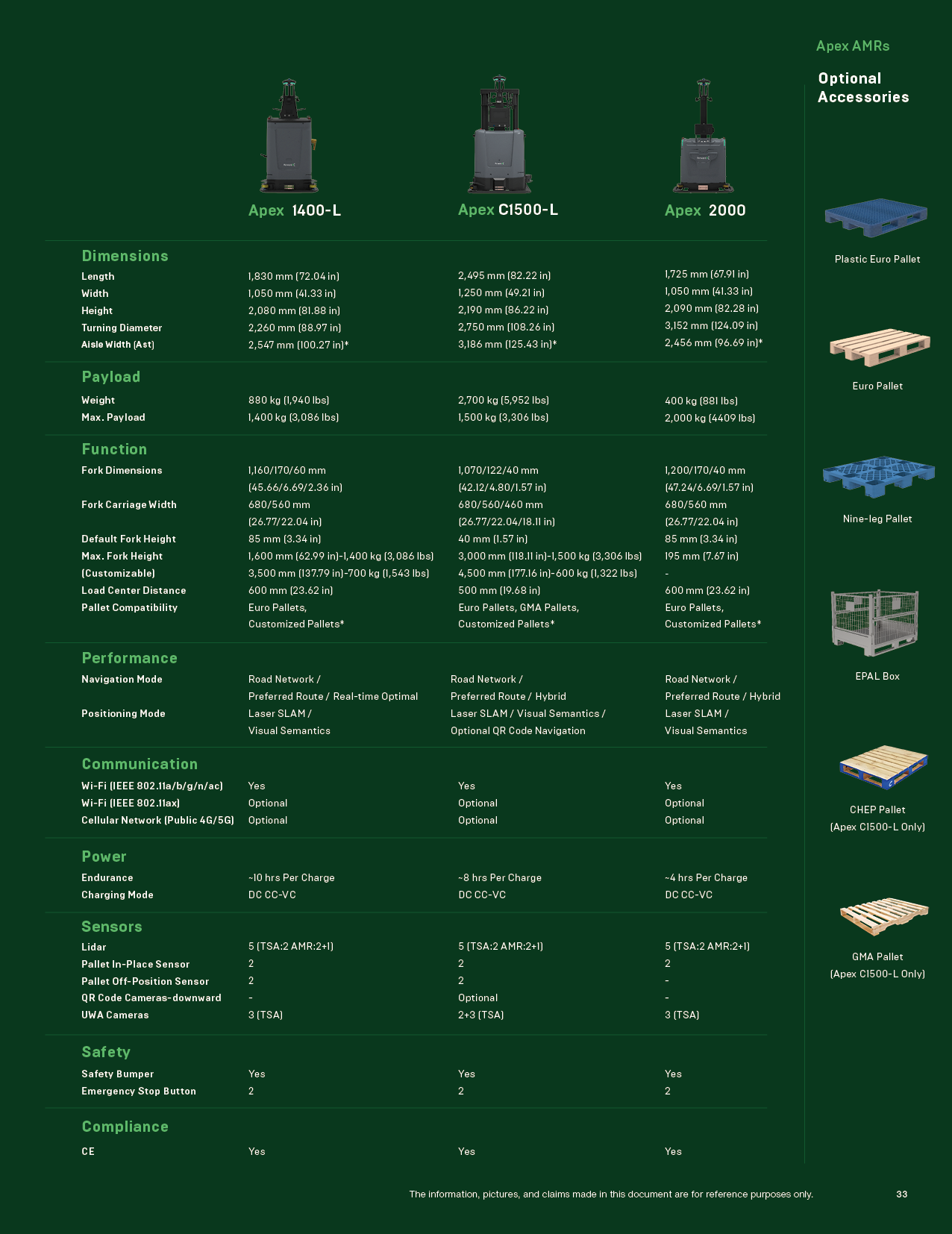

Apex Series

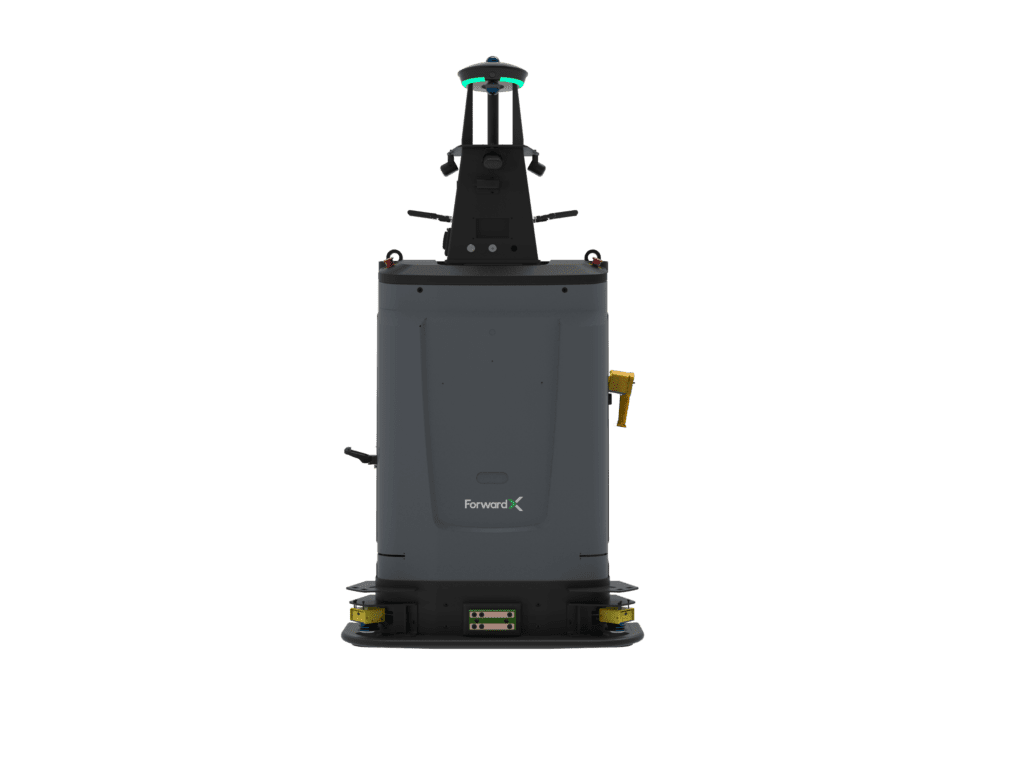

Apex 1400-L
Apex 1400-L
Dimensions
Length: 1,830 mm (72.04 in)
Width: 1,050 mm (41.33 in)
Height: 2,080 mm (81.88 in)
Turning Diameter: 2,260 mm (88.97 in)
Aisle Width [Ast]: 2,200 mm (81.61.in)
Payload
Weight: 880 kg (1,940 lb)
Max. Payload: 1,400 (3,086 lb)
Function
Fork Dimensions (mm): 1,160/170/60 mm
Fork Dimensions (in): 45.66/6.69/2.36 in
Fork Carriage Width (mm): 680/560 mm
Fork Carriage Width (in): 26.77
Default Fork Height: 85 mm (3.34 in)
Max. Fork Height (mm/in): 1,600 mm (62.99 in)
Max. Fork Height (kg/lbs): 1,400 kg (3,086 lbs)
Cusomizablet: 3,500 mm (136.79 in)
(Customizable): 3,500 mm (137.79 in)
(Customizable): 700 kg (1,543 lbs)
Load Center Distance: 600 mm (23.62 in)
Pallet Compatibility: Euro Pallets, Constomized Pallets*
Performance
Navigation Mode 1: Road Network
Navigation Mode 2: Preferred Route
Navigation Mode 3: Real-time Optimal
Positioning Mode 1: Laser SLAM / Visual
Positioning Mode 2: Visual Semantics
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~10 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
Lidar: 5 (TSA:s AMR:2+1)
Pallet In-Place Sensor: 2
Pallet Off-Position Sensor: 2
QR Code Cameras-downward: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Compliance
CE: Yes

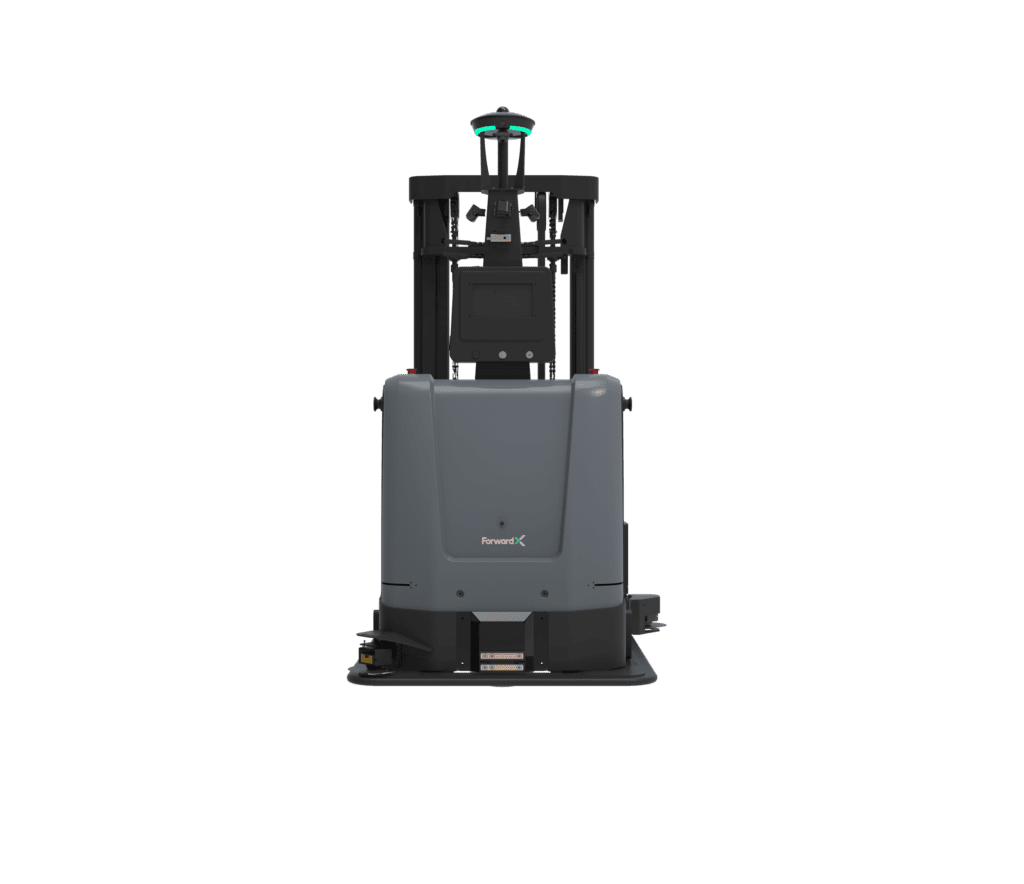

Apex 1500-L
Apex 1500-L
Dimensions
Length: 2,495 mm (33.46 in)
Width: 1,250 mm (49.21 in)
Height: 2,190 mm (86.22)
Turning Diameter: 2,750 mm (108.26 in)
Aisle Width: 2,999 mm (118.07.in)
Payload
Weight: 2700 kg (5,952 lb)
Max. Payload: 1,500 kg (3,306 lb)
Function
Fork Dimensions (mm): 1,070/122/40 mm
Fork Dimensions (in): 42.12/4.80/1.57 in
Fork Carriage Width (mm): 680/560/460 mm
Fork Carriage Width (in): 26.77/22.04/18.11 in
Default Fork Height: 85 mm (3.34 in)
Max. Fork Height (mm/in): 1,600 mm (62.99 in)
Max. Fork Height (kg/lbs): 1,400 kg (3,086 lbs)
Cusomizablet: 3,500 mm (136.79 in)
(Customizable): 3,500 mm (137.79 in)
(Customizable): 700 kg (1,543 lbs)
Load Center Distance: 600 mm (23.62 in)
Pallet Compatibility: Euro Pallets, Constomized Pallets*
Performance
Navigation Mode 1: Road Network
Navigation Mode 2: Preferred Route
Navigation Mode 3: Real-time Optimal
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual Semantics
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~10 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 5 (TSA:2 AMR:2+1)
Pallet in-Place Sensor: 2
Pallet Off-Position Sesor: 2
QR Coede Cameras-downward: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Compliance
CE: Yes

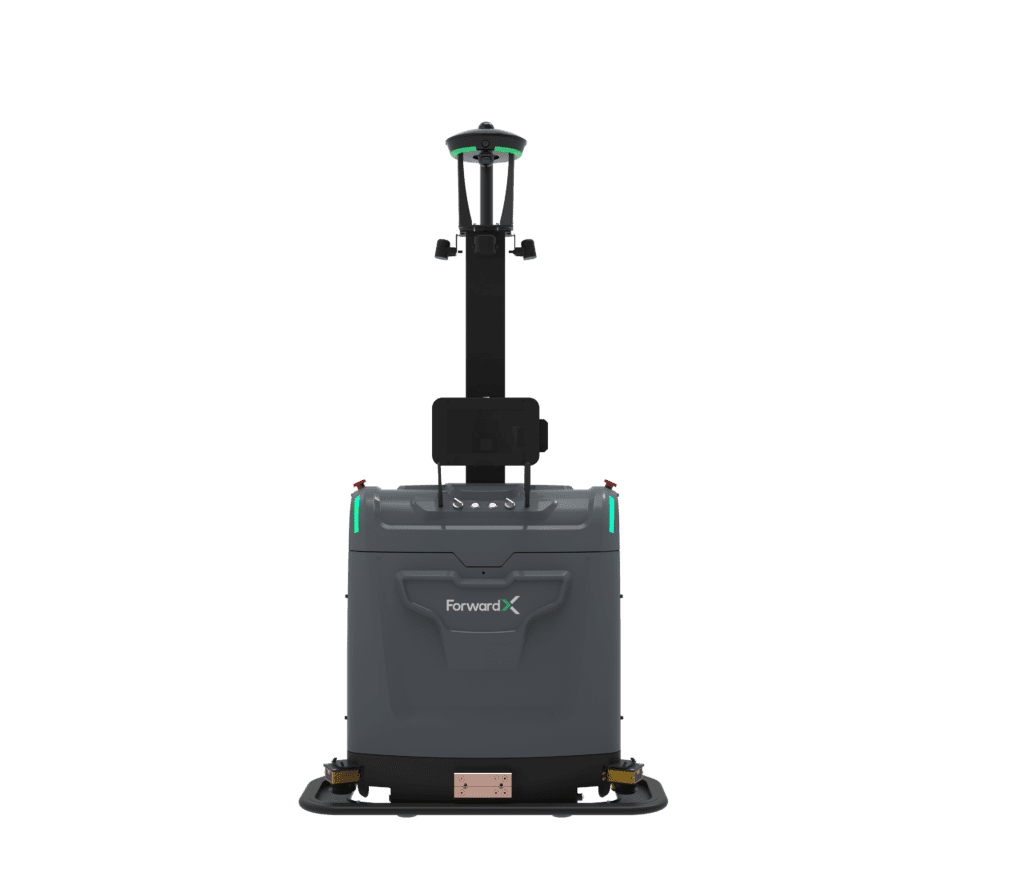

Apex 2000
Apex 2000
Dimensions
Length: 1,725 mm (67.91 in)
Width: 1,050 mm (41.33 in)
Height: 2,090 mm (82.28)
Turning Diameter: 3,152 mm (124..09 in)
Ground Clearance: 2,252 mm (88.66.in)
Payload
Weight: 400 kg (881 lb)
Max. Payload: 2,000 (4409 lb)
Function
Fork Dimensions (mm): 1,200/170/40 mm
Fork Dimensions (in): 47.24/6.69/1.57 in
Fork Carriage Width (mm): 680/560 mm
Fork Carriage Width (in): 26.77/22.04 in
Default Fork Height: 85 mm (3.34 in)
Max. Fork Height (mm/in): 195 mm (7.67 in)
Cusomizablet: 3,500 mm (136.79 in)
(Customizable): 3,500 mm (137.79 in)
(Customizable): N/A
Load Center Distance: 600 mm (23.62 in)
Pallet Compatibility: Euro Pallets, Constomized Pallets*
Performance
Navigation Mode 1: Road Network
Navigation Mode 2: Preferred Route
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual Semantics
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~4 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
Lidar: 5 (TSA:2 AMR:2+1)
Pallet In-place Sensor: 2
Pallet Off-Position Sensor: 2
QR Code Cameras-downward
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Compliance
CE: Yes
ECommerce Beverage Warehouse
This JD.COM beverage fulfillment warehouse added ForwardX Apex autonomous forklifts to their operation to reduce operational costs and increase efficiency and safety.
50%🡇
UPH
0.6% in
OPERATIONAL COSTS
1.8 mph
ERROR RATE
75,000
SQ FT WAREHOUSE
World's Largest Cosmetics Company Cosmetics Warehouse
After realizing immediate results using ForwardX Max 600-L AMRs, the warehouse also introduced the Apex 1400-L autonomous forklift. The project marked the first successful AMR and autonomous forklift operation.
