Flex Product Family
The Flex family is highly scalable and can be adapted to different scenarios through a variety of functional modules.
Safety
Workflow
Guidance
24/7
Operation
Versatility
Adaptability

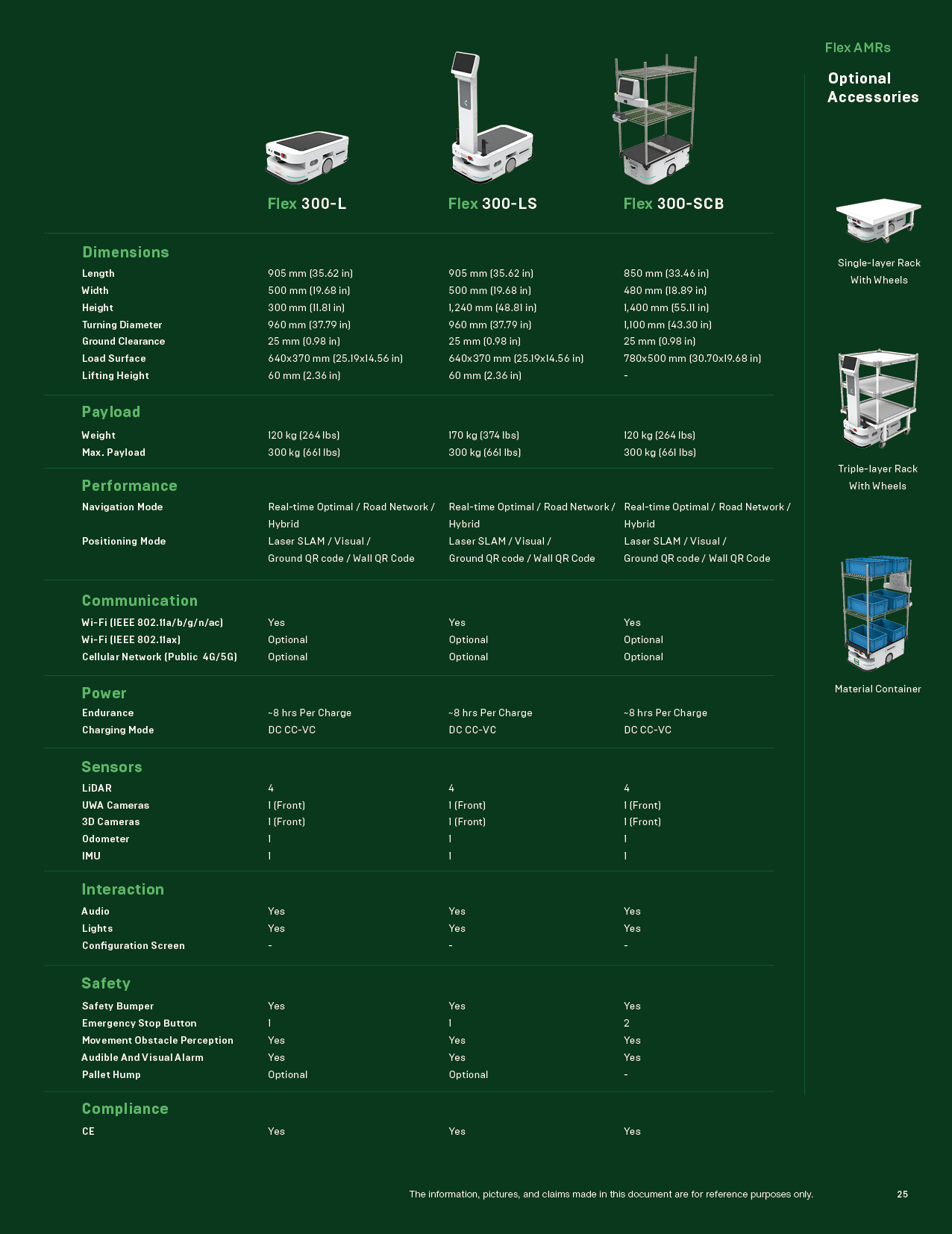

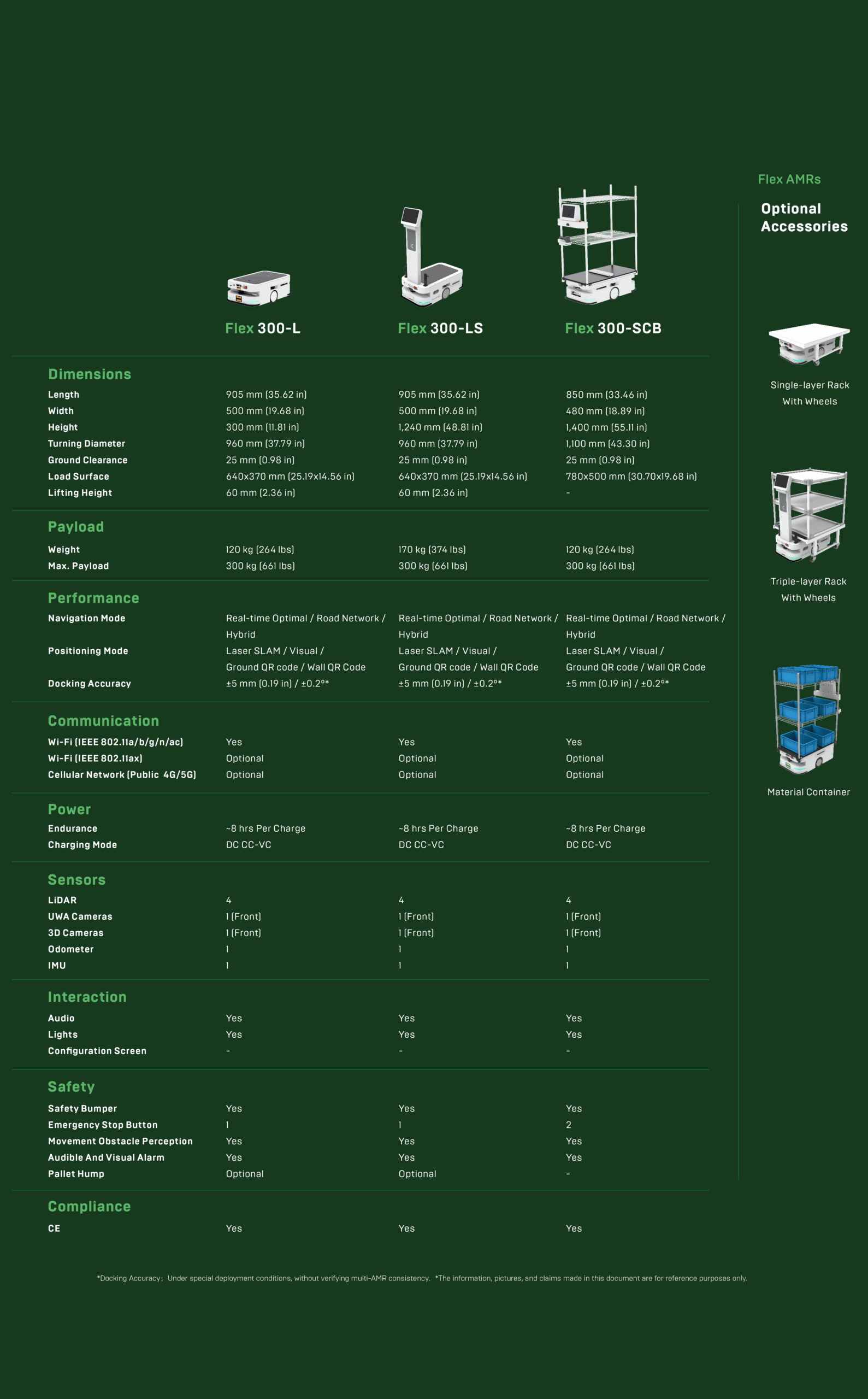

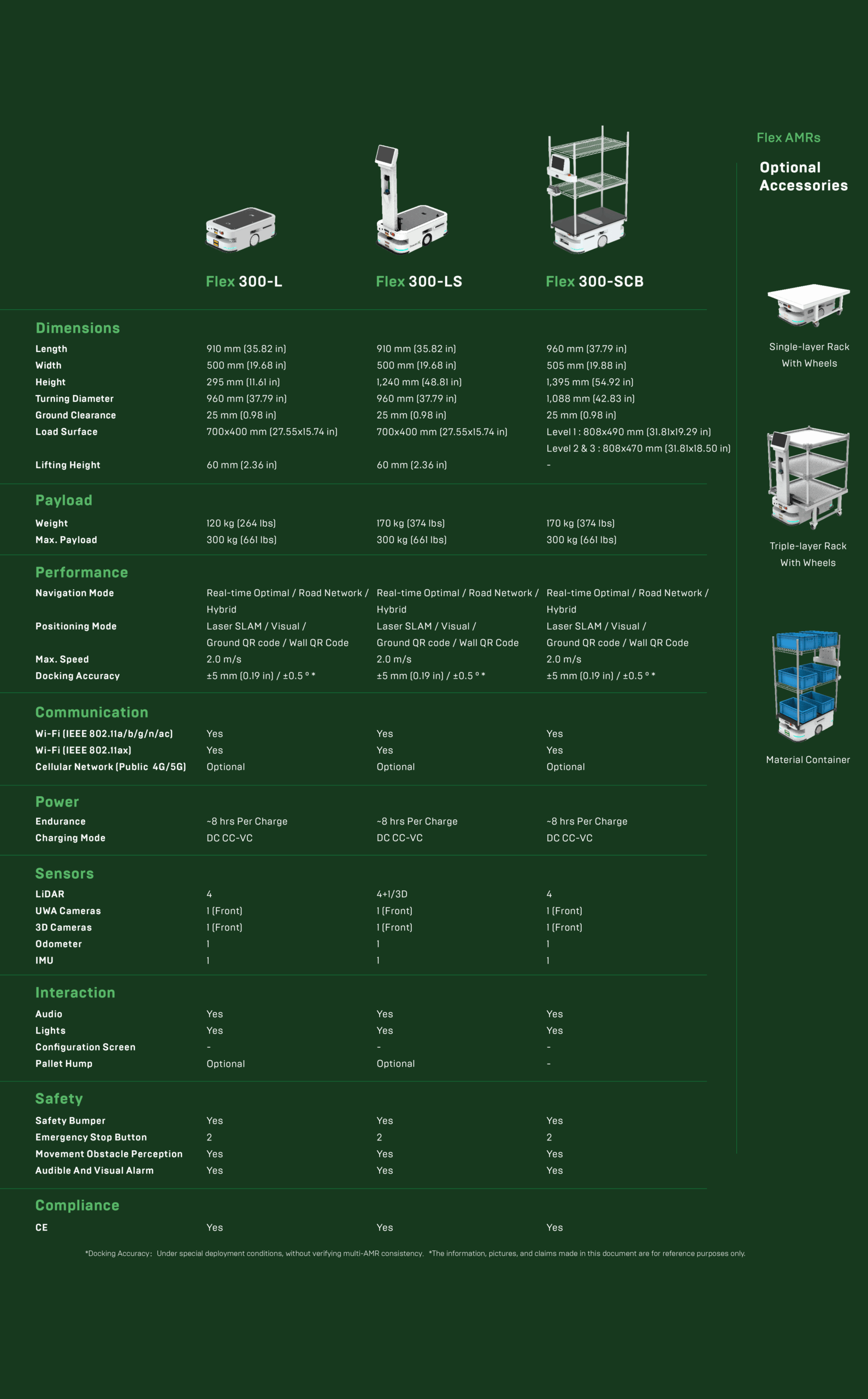

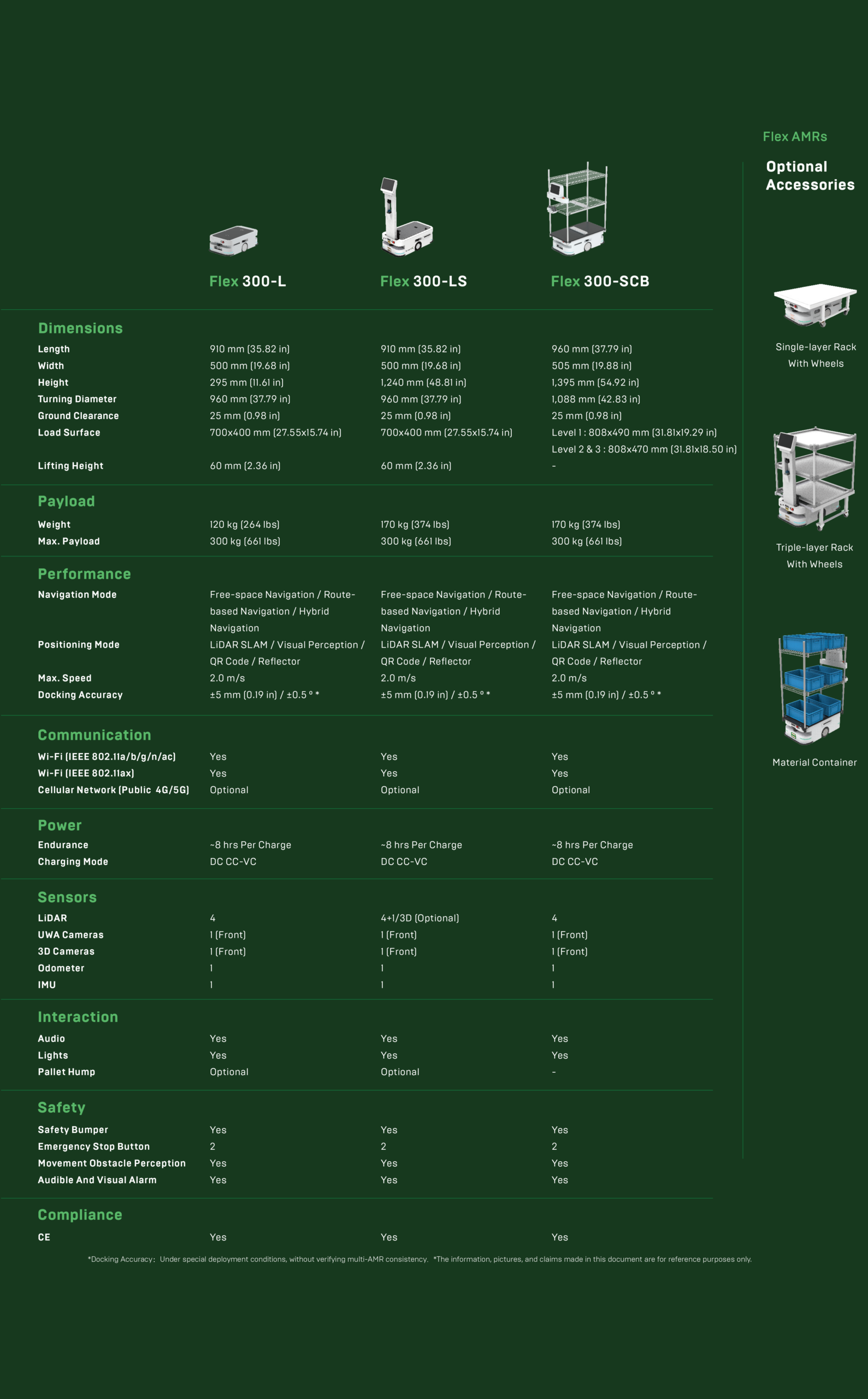

Flex 300 AMRs
Flex 300-L
Flex 300-L
Dimensions
Length: 800 mm (33.46 in)
Width: 480 mm
Height: 295 mm (11.61)
Turning Diameter: 960 mm (37.79 in)
Ground Clearance: 25 mm (0.98.in)
Load Surface (mm): 640x370 mm
Load Surface (in): 25.19x14.56 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 120 kg (264 lb)
Max. Payload: 300 (661 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 4
UWA Cameras: 1 [Front]
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 1
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Flex 300-LS
Flex 300-LS
Dimensions
Length: 800 mm (33.46 in)
Width: 480 mm
Height: 1,237 mm (48.70)
Turning Diameter: 960 mm (37.79 in)
Ground Clearance: 25 mm (0.98.in)
Load Surface (mm): 640x370 mm
Load Surface (in): 25.19x14.56 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 120 kg (264 lb)
Max. Payload: 300 (661 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 4
UWA Cameras: 1 [Front]
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 1
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Flex 300-SCB
Flex 300-SCB
Dimensions
Length: 850 mm (33.46 in)
Width: 480 mm (18.89 in)
Height: 295 mm (11.61)
Turning Diameter: 1,100 mm (43.30 in)
Ground Clearance: 25 mm (0.98.in)
Load Surface (mm): 780x500 mm
Load Surface (in): 30.70x19.68 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 120 kg (264 lb)
Max. Payload: 300 (661 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 4
UWA Cameras: 1 [Front]
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes

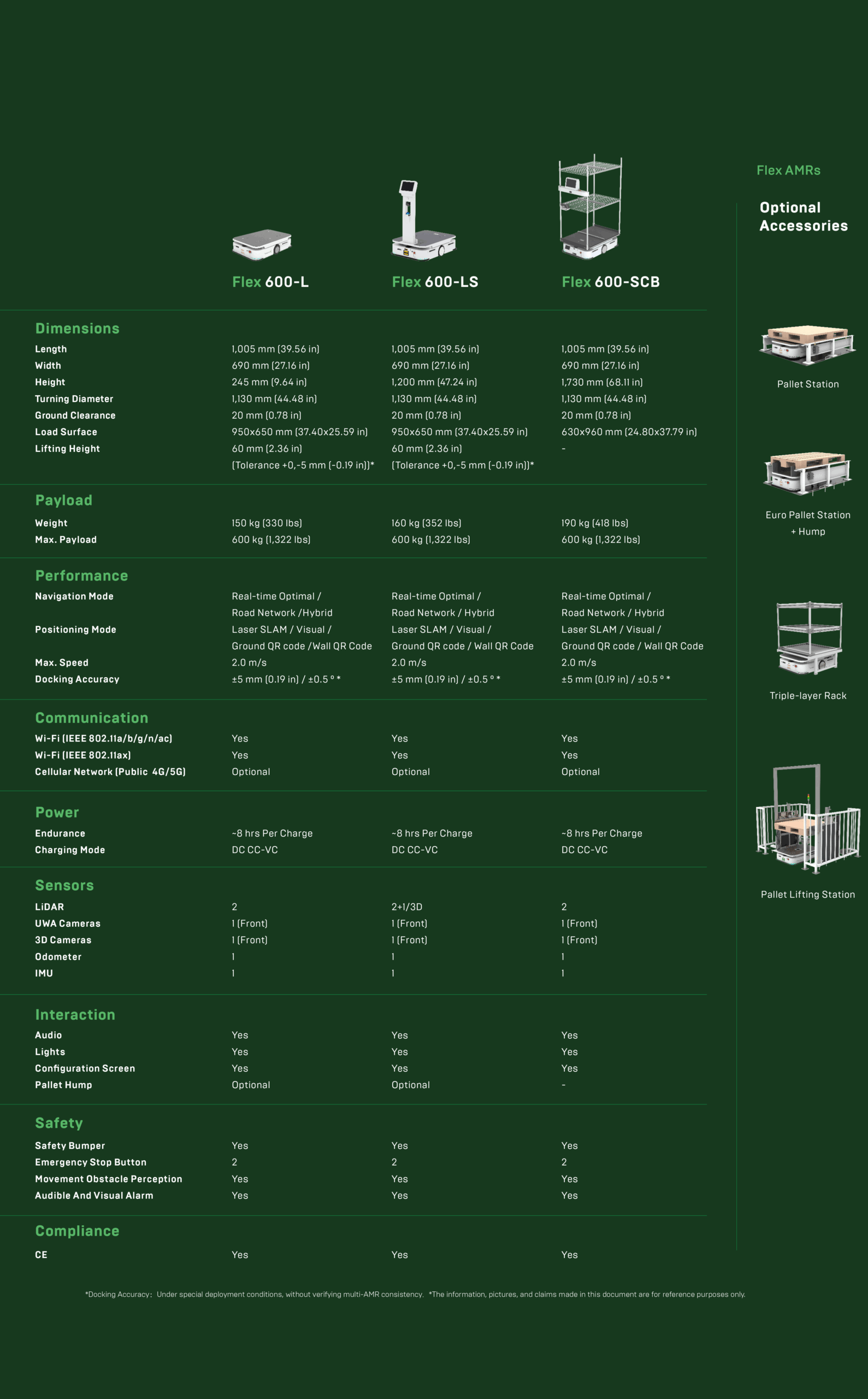

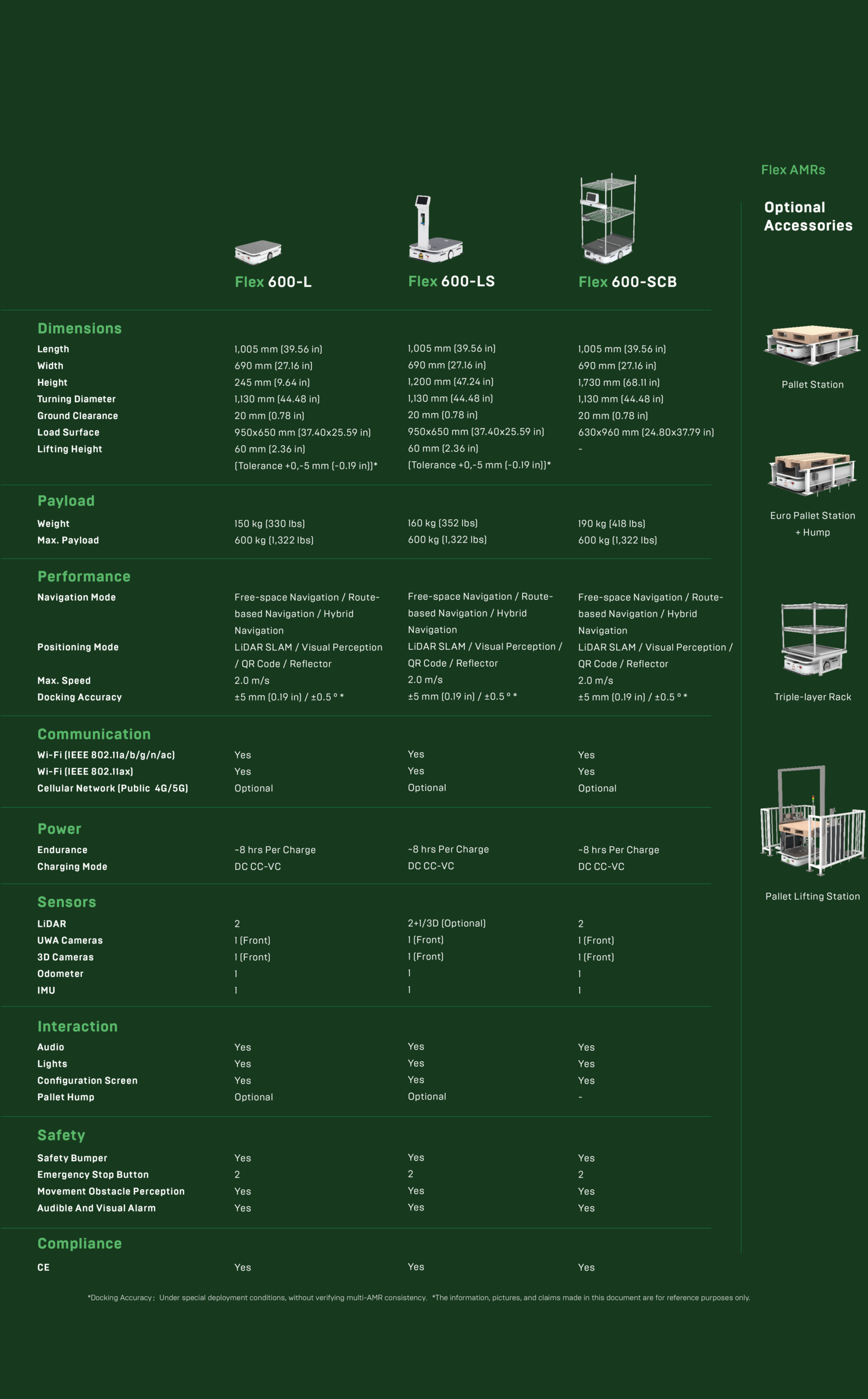

Flex 600 AMRs

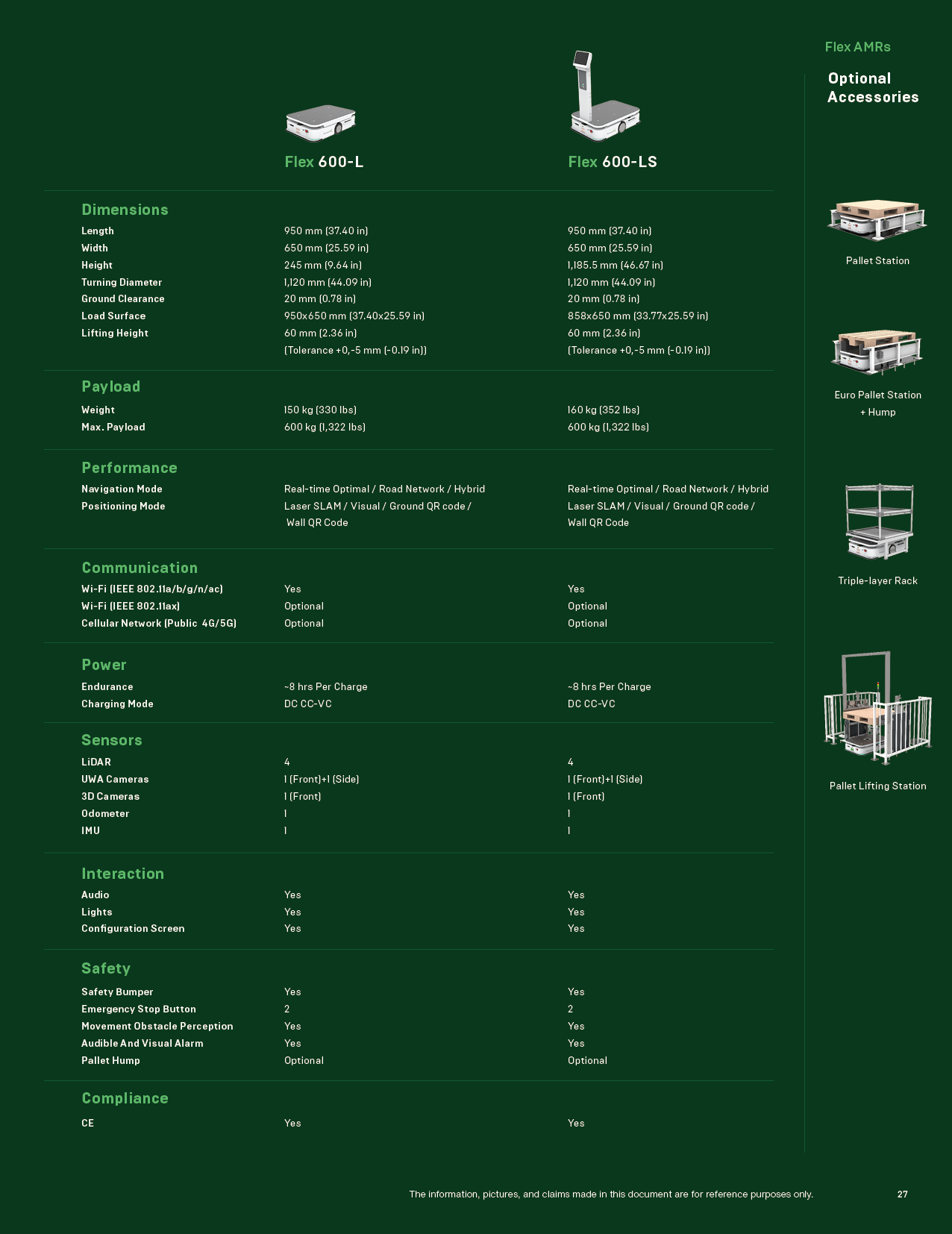

Flex 600-L
Flex 600-L
Dimensions
Length: 950 mm (37.40 in)
Width: 650 mm
Height: 245 mm (9.64)
Turning Diameter: 1,120 mm (44.09 in)
Ground Clearance: 20 mm (0.78.in)
Load Surface (mm): 950x650 mm
Load Surface (in): 37.40x25.59 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 160 kg (352 lb)
Max. Payload: 300 kg 1,322 lb)
Function
Towing Modulet: N/A
Towing Capacity: N/A
Ground Clearance (Towing Module): N/A
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Q.D.: N/A
Sensors
LiDAR: 4
UWA Cameras: 1 [Front] +1 (Side)
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration Screen: Yes
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Flex 600-LS
Flex 600-LS
Dimensions
Length: 950 mm (37.40 in)
Width: 650 mm
Height: 245 mm (9.64)
Turning Diameter: 1,120 mm (44.09 in)
Ground Clearance: 20 mm (0.78.in)
Load Surface (mm): 858x650 mm
Load Surface (in): 33.77x25.59 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 160 kg (352 lb)
Max. Payload: 300 kg 1,322 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 4
UWA Cameras: 1 [Front]
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 1
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Flex 600-ST
Flex 600-ST
Dimensions
Length: 800 mm (33.46 in)
Width: 480 mm (18.89 in)
Height: 295 mm (11.61)
Turning Diameter: 1,100 mm (43.30 in)
Ground Clearance: 25 mm (0.98.in)
Load Surface (mm): 780x500 mm
Load Surface (in): 30.70x19.68 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 120 kg (264 lb)
Max. Payload: 300 (661 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Hybrid
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Ground QR Code
Positioning Mode 4: Wall QR Code
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Sensors
LiDAR: 4
UWA Cameras: 1 [Front]
3D Cameras: 1 [Front]
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: N/A
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Chain Store Warehouse
This JD.COM warehouse chose a ForwardX Flex solution for its chain store distribution warehouse. The solution was designed to address challenges in the ability to adapt to seasonal changes in demand, low picking efficiency, and high operating costs.
53%🡅
UPH
33%🡇
OPERATIONAL COST
45%
UPH PEAK
108,000
SQ FT WAREHOUSE
IKEA Warehouse
LI & FUNG chose a ForwardX Flex solution for its IKEA eCommerce warehouse. The solution was designed to address the large order volumes and high picking intensity and simplify its processes.
45%🡅
UPH
500
ORDERS PER HOUR
1300+
LINES PER HOUR
27,000
SQ FT WAREHOUSE
Coffee Distribution
SF DHL’s Beijing warehouse provides warehousing and distribution services to one of China’s largest coffee brands, supporting 400 retail locations.
