Max Product Family
The Max series brings the flexibility of Flex and the piece picking swarming method to your heavier case- and pallet- picking workflows.
Safety
Rack & Pallet Movement
Case Picking
Versatility
Adaptability
Max Series

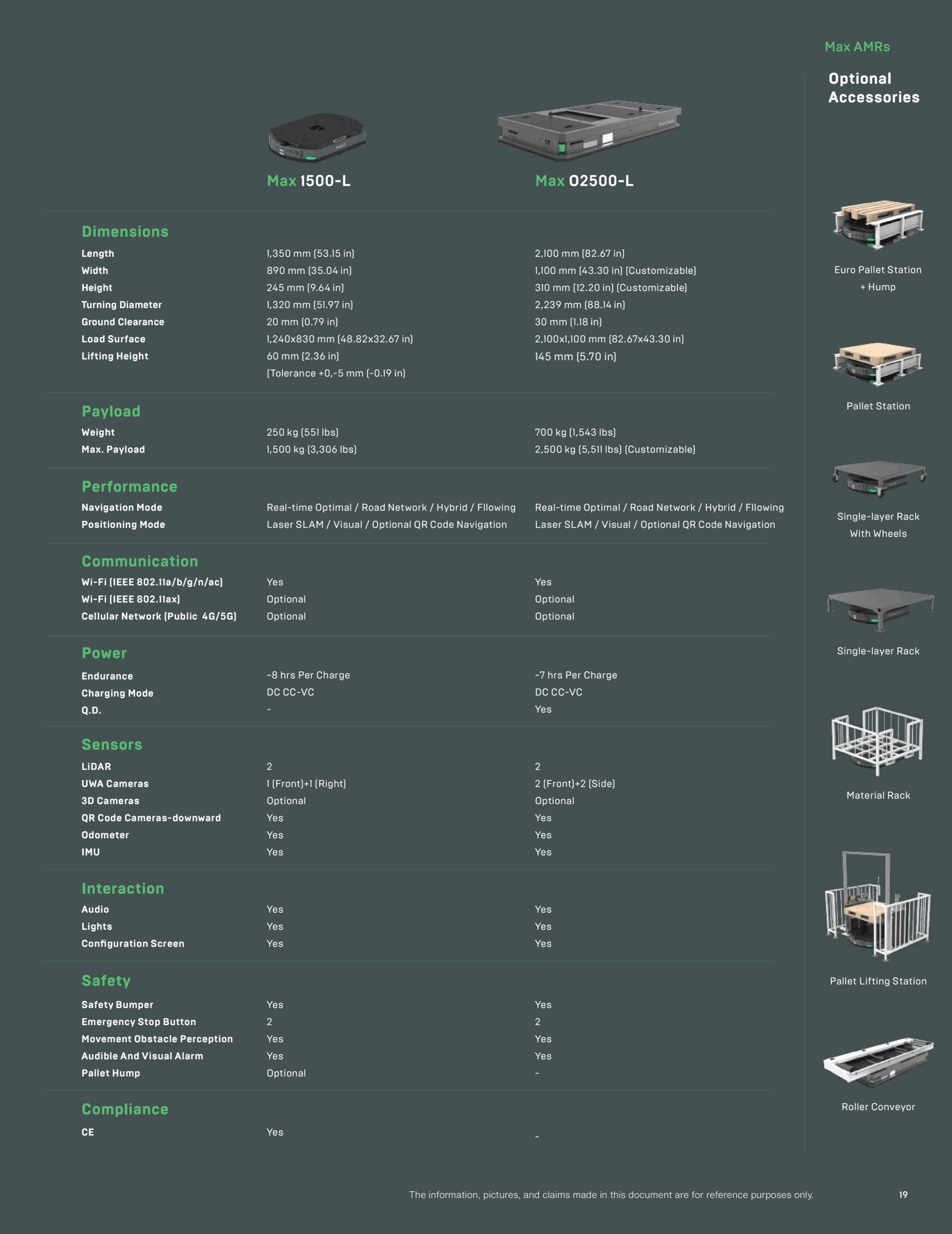

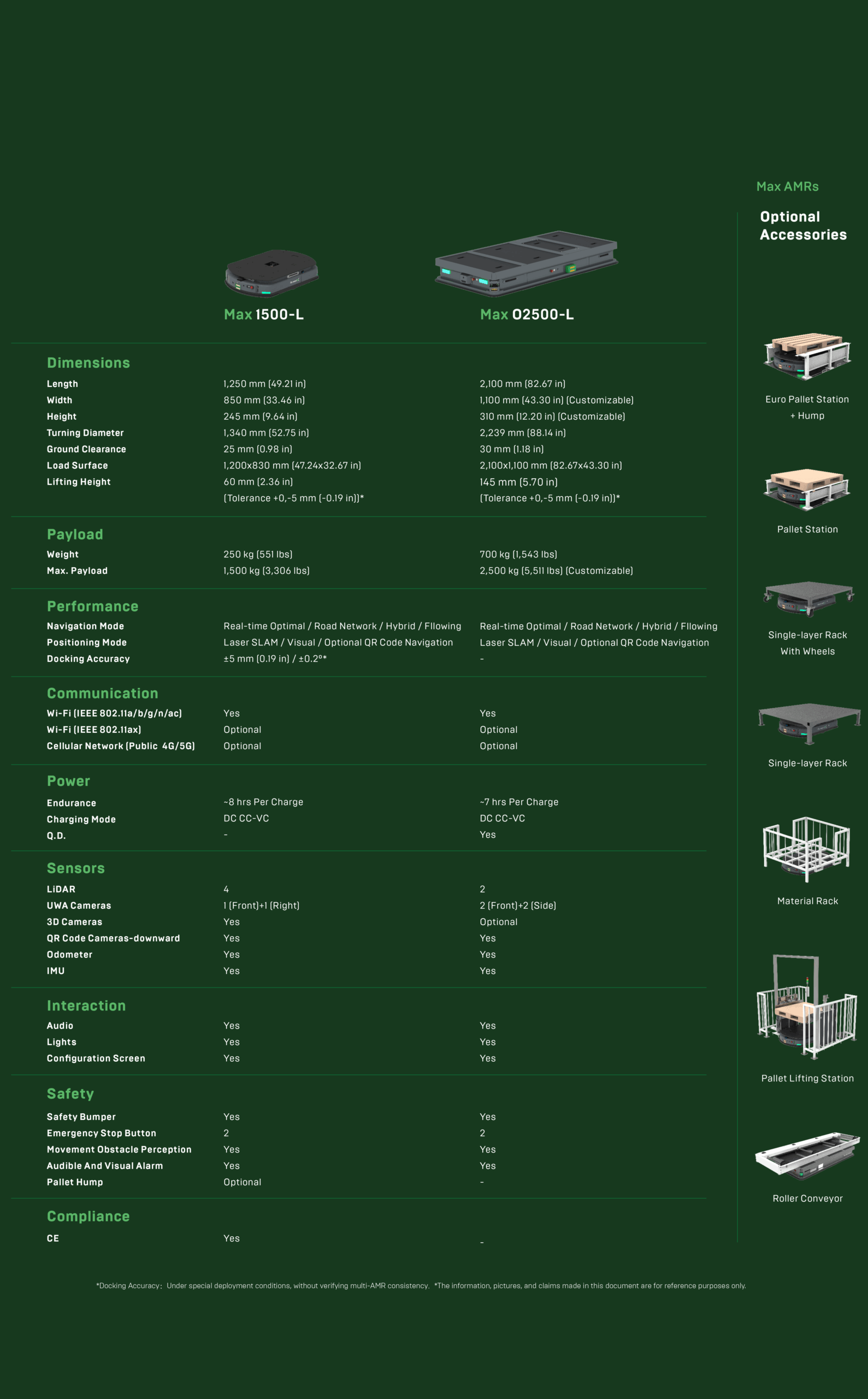

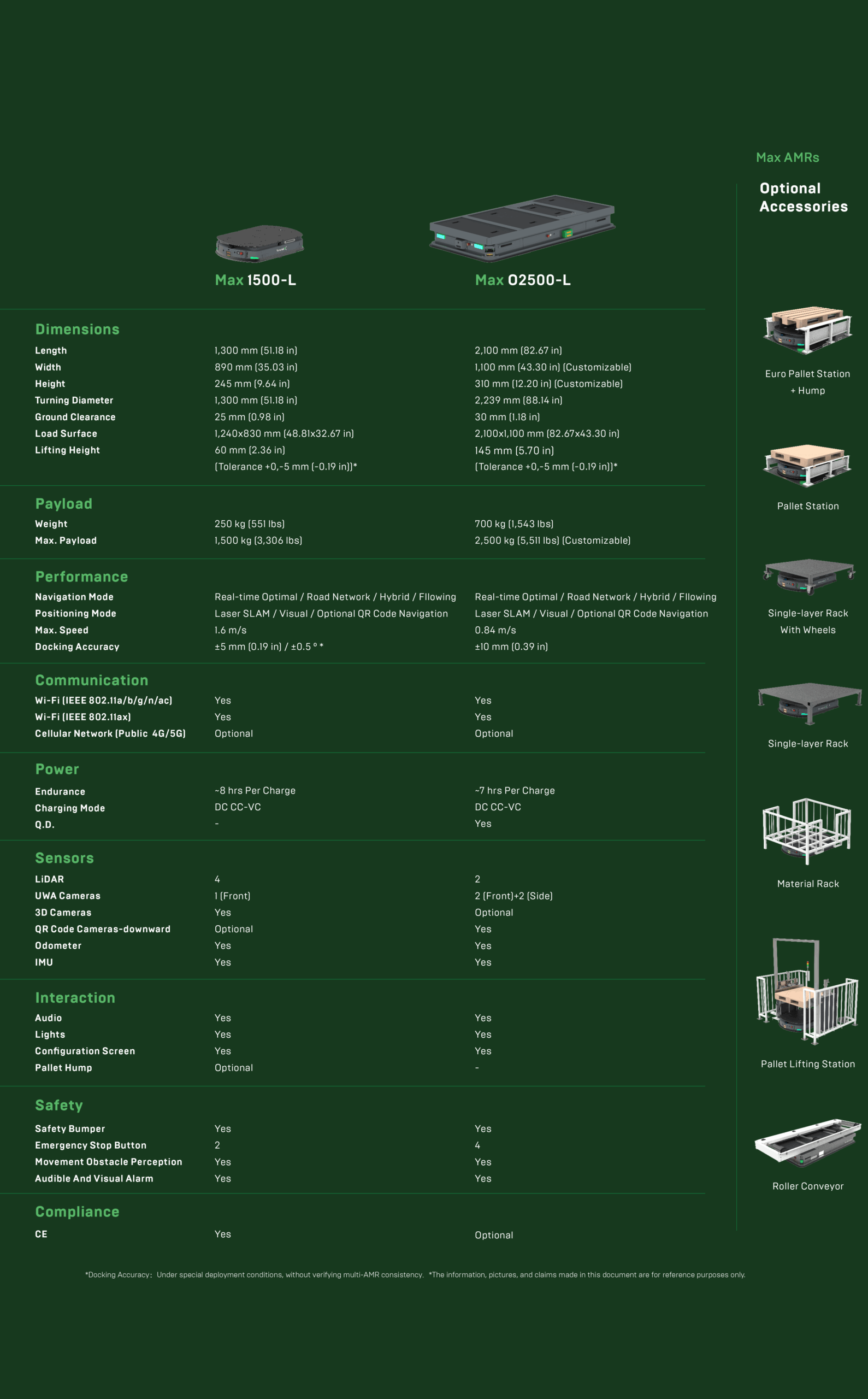

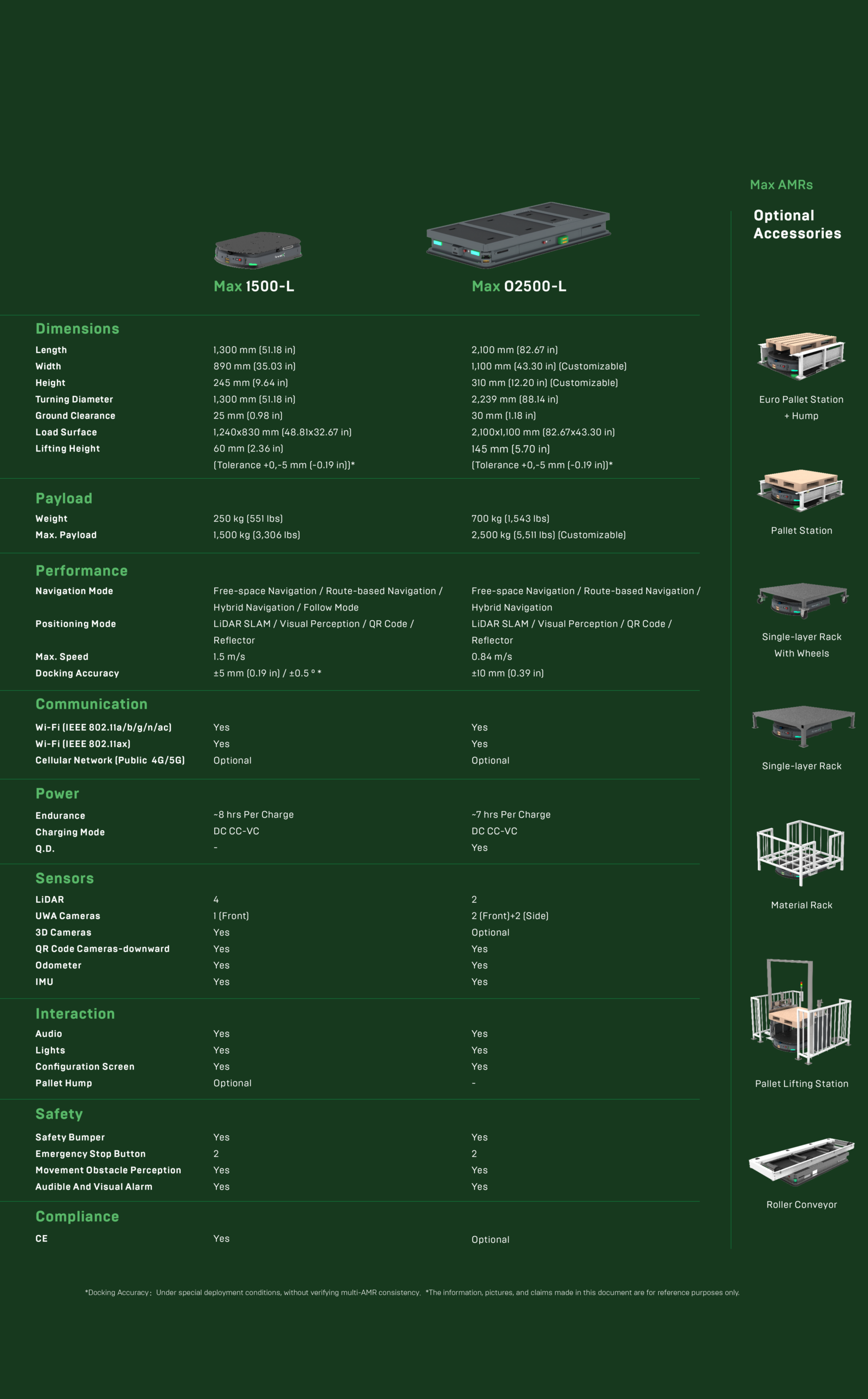

Max 1500-L
Max 1500-L
Dimensions
Length: 1,250 mm (49.21 in)
Width: 800 mm (33.46 in)
Height: 245 mm (11.61 in)
Turning Diameter: 1, 340 mm (57.75 in)
Ground Clearance: 25 mm (0.98.in)
Load Surface (mm): 1,200x830 mm
Load Surface (in): 47.24.19x14.56 in
Lifting Height: 60 mm (2.36 in)
Payload
Weight: 250 kg (551 lb)
Max. Payload: 1500 (3,306 lb)
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Following
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Optional QR Code navigation
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~8 hrs Per Charge
Charging Mode: DC CC-VC
Q.D.: N/A
Sensors
Lidar: 4
UWA Cameras: 1 [Front]+1 [Right]
3D Cameras: Optoinal [0-2]
QR Code Cameras-downward: Yes
Odometer: Yes
IMU: Yes
Interaction
Audio: Yes
Lights: Yes
Configuration Screen: Yes
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
Max 02500-L
Max 02500-L
Dimensions
Length: 2,100 mm (88.67 in)
Width: 1,100 mm (43.30 in)
Height: 310 mm (12.20 in)
Turning Diameter: 2,239 mm (88.14 in)
Ground Clearance: 30 mm (1.18.in)
Load Surface (mm): 2,100x1,100 mm
Load Surface (in): 82.67x43.30 mm
Lifting Height: 145 mm (5.70 in)
Payload
Weight: 700 kg (1,543 lb)
Max. Payload: 2,500 (5,511 lb) Customizable
Performance
Navigation Mode 1: Real-time Optimal
Navigation Mode 2: Road Network
Navigation Mode 3: Following
Positioning Mode 1: Laser SLAM
Positioning Mode 2: Visual
Positioning Mode 3: Optional QR Code navigation
Communication
Wi-Fi: (IEEE 802.11a/b/g/n/ac): Yes
Wi-Fi: (IEEE 802.11ax): Optional
Cellular Network (4G/5G): Optional
Power
Endurace: ~7 hrs Per Charge
Charging Mode: DC CC-VC
Q.D.: Yes
Sensors
Lidar: 2
UWA Cameras: 2 [Front]+2 [Side]
3D Cameras: 1 [Front]
QR Code Cameras-downward: Yes
Odometer: 1
IMU: 1
Interaction
Audio: Yes
Lights: Yes
Configuration: Yes
Safety
Safety Bumper: Yes
Emergency Stop Button: 2
Movement Obstacle Perception: Yes
Audible And Visual Alarm: Yes
Compliance
CE: Yes
World's Largest Cosmetics Company Suzhou Central Warehouse
Client’s self-operated warehouse provides distribution for regional warehouses and hundreds of sales channels. The original process was mostly hand-carried, with high labor intensity and low picking efficiency.
50%🡅
EFFICIENCY
50%🡇
OPERATIONAL COSTS
54,000
SQ FT WAREHOUSE
12
AMRS
Beverage Warehouse
This JD.COM warehouse dealt with the distribution of water for B2B store replenishment and B2C eCommerce fulfillment. Due to the physically demanding nature of case picking, JD.COM needed a solution that would relieve its employees and increase productivity.
